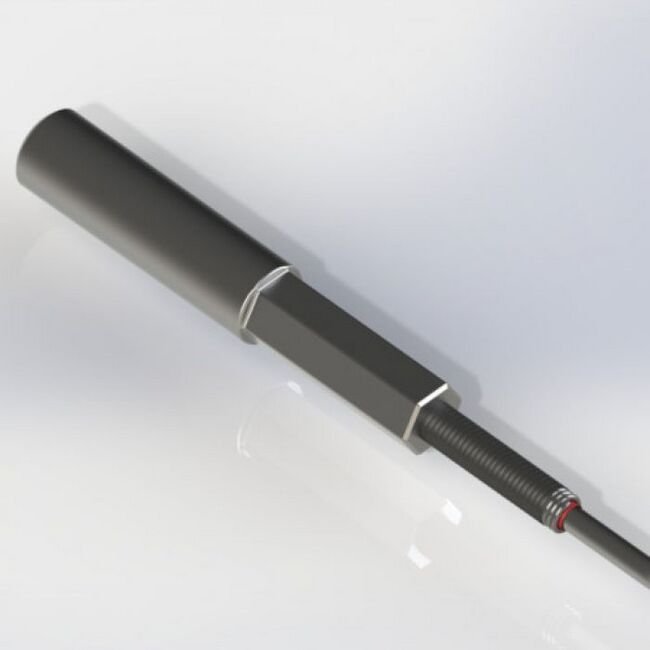

0.25 Inch (in) Diameter (C) Plated Steel Cap Terminal

Name: 0.25 Inch (in) Diameter (C) Plated Steel Cap Terminal
Brand: Carl Stahl Sava Industries
SKU: CAP-224d79
Price: 49.99 USD
Availability: OutOfStock

SKU:CAP-224d79

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Cap Terminals allow the termination of the casing, while allowing the cable or wire to pass through it.

Product Specifications

Note

This product has a minimum quantity of 25.

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Plated Steel

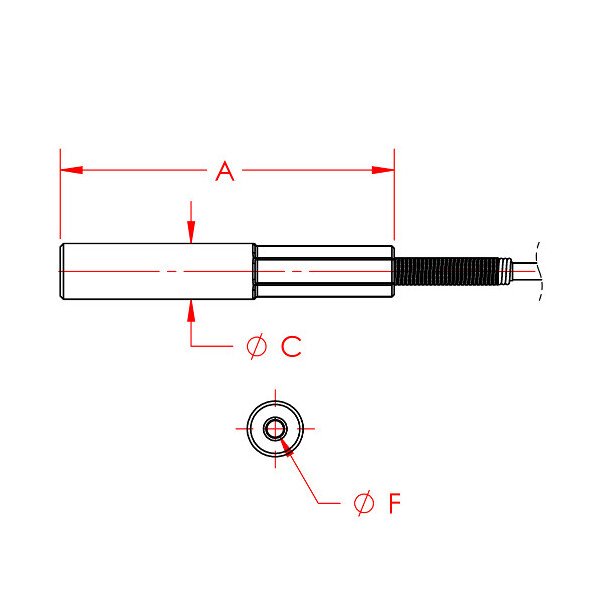

Technical Specs Diameter C

0.25 in

Technical Specs Fitting Length A

1 in

Technical Specs Hole Size F

0.080 in

Technical Specs Mates With Casing

C187PLPC

Technical Specs Maximum Mating Cable Diameter

0.063 in

Technical Specs Minimum Mating Cable Diameter

0.045 in

Technical Specs Part

6108P187

0.25 Inch (in) Diameter (C) Plated Steel Cap Terminal
