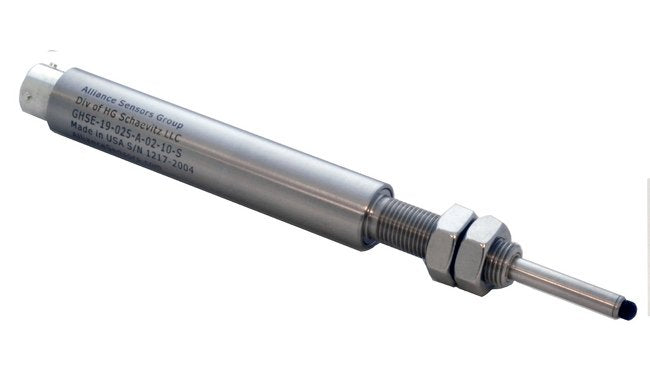

0.250" Stroke Stainless Steel DC Voltage Linear Sensor

Name: 0.250" Stroke Stainless Steel DC Voltage Linear Sensor
Brand: Alliance Sensors Group
SKU: SPR-ad595e
Price: 129.99 USD
Availability: OutOfStock

SKU:SPR-ad595e

0.250" Stroke Stainless Steel DC Voltage Linear Sensor for precise displacement measurement with durable spring-loaded design and CE approval.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 0.250 Inch Stroke Stainless Steel DC Voltage Linear Sensor is a high-precision device designed for accurate linear displacement measurement. With a stout stainless steel body and a spring-loaded mechanism, this sensor ensures durability and reliable performance. It offers a wide temperature range of -40 to 105 ºC, maintaining precision in various environments. The 0 to 10 V output makes it compatible with a range of systems, while its <0.25% linearity and 0.025% resolution guarantee precise measurements. Approved for European Conformity (CE), this sensor meets stringent quality standards for institutional and government procurement.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Connector Type

Axial Power Take-Off (PTO)

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

3/4 in

Technical Specs Range

1/4 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Sensor Type

Spring Loaded

Technical Specs Size

3/4 in

Technical Specs Stroke

0.250 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Update Rate

300 Hz

0.250" Stroke Stainless Steel DC Voltage Linear Sensor
