0.281 Inch (in) Pinhole (A) and 0.125 Inch (in) Cable Hole (B) Stainless Steel Rectangular Lanyard Tab

Name: 0.281 Inch (in) Pinhole (A) and 0.125 Inch (in) Cable Hole (B) Stainless Steel Rectangular Lanyard Tab
Brand: Sandin Manufacturing
SKU: STA-271551
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-271551

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

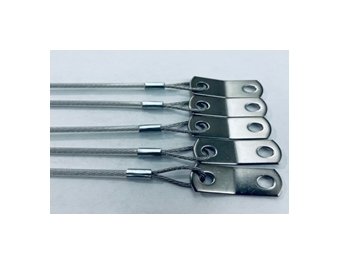

Sandin Manufacturing offers a wide range of stainless steel cable lanyard tabs in a pear or rectangular shape. Stainless steel wire rope lanyard tabs are a great end fitting when you need to secure a cable assembly to a fixture via a screw or bolt. Various sizes and pinholes are available. Typically, cable lanyard tabs are held by a stripped loop & compression sleeve, but we can help with custom designs!We will design a custom stainless steel tab.

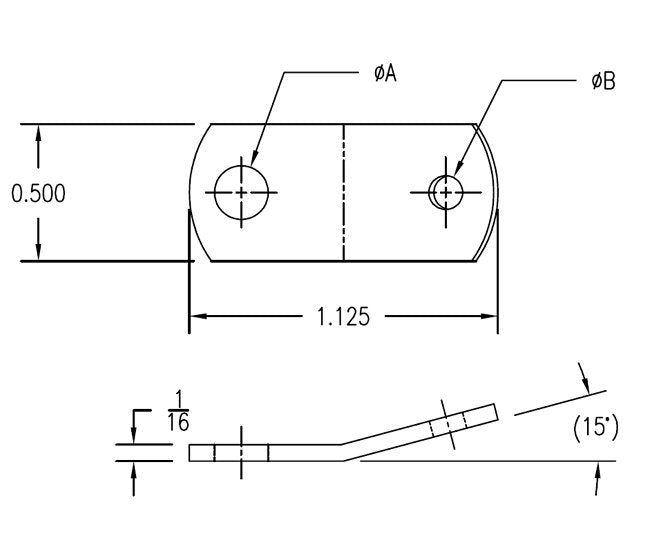

Product Specifications

Specifications Applications

Cable

Specifications Bend

15 º

Specifications Cable Hole B

0.125 in

Specifications Length

1.125 in

Specifications Material

Stainless Steel

Specifications Pinhole A

0.281 in

Specifications Shape

Rectangular

Specifications Thickness

1/16 in

Specifications Type

Lanyard

Specifications Width

0.500 in

0.281 Inch (in) Pinhole (A) and 0.125 Inch (in) Cable Hole (B) Stainless Steel Rectangular Lanyard Tab
