0.315 Inch V-Opening Die-Thane Press Brake 2V-Die
0.315 Inch V-Opening Die-Thane Press Brake 2V-Die
SKU:DIE-f4be5d
Precision 0.315in V-Opening Die for scratch-free sheet metal bending, quick size changes, and seamless air bending.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
0.315 Inch V-Opening Die-Thane Press Brake 2V-Die
$129.99
Quantity: 1
Claim Your Seller Account
0.315 Inch V-Opening Die-Thane Press Brake 2V-Die
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 0.315 Inch V-Opening Die-Thane Press Brake 2V-Die is designed for precision bending of sheet metal, featuring V-Openings of 0.315in and 0.472in with a 90-degree angle. Made of tooling grade Urethane, it ensures scratch-free bending, saving time and money compared to traditional methods. Compatible with both American and European style machines, making size adjustments quick and easy. Perfect for Air bending applications with no need for alignment or shimming, providing seamless bending solutions for various projects.
Product Specifications
Specifications Angle Of V
90 º
Specifications Features

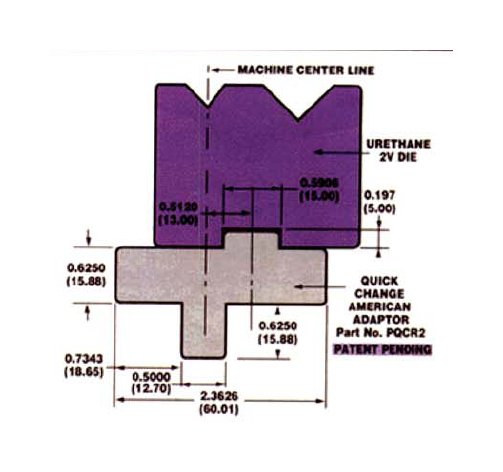

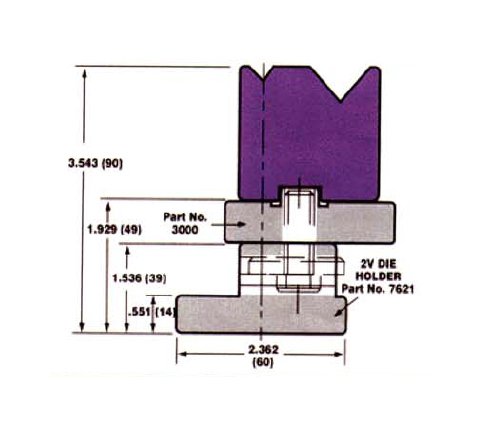

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.
Specifications Height H
1.811 in | 46 mm
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.8 mm
Specifications V Opening V1
0.315 in | 8 mm
Specifications V Opening V2
0.472 in | 12 mm
Specifications Width W
1.968 in | 50 mm
