0.36 Inch Music Wire Compression Spring

Name: 0.36 Inch Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-d9eddb
Price: 5.83 USD
Availability: OutOfStock

High-quality 0.36 Inch Music Wire Compression Spring for resilient and durable performance in various applications.

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 0.36 Inch Outside Diameter Music Wire Compression Spring is engineered for precise applications requiring resilience and durability. Crafted from high-quality music wire, this compression spring offers a wire diameter of 0.038 inches and a free length of 0.438 inches. With a load rating of 7.56 pounds and a spring rate of 37.28 lbs/inch, this spring ensures optimal performance in varied environments. Ideal for industrial and institutional use, this spring provides reliable operation and longevity.

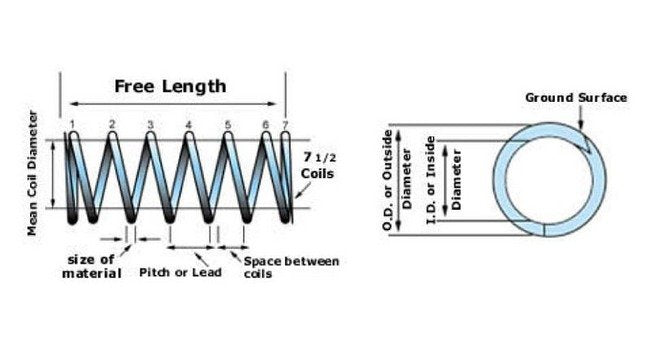

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.438

Specifications Length L1

0.235

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

7.56

Specifications Load Ss

6.46

Specifications Material

Music Wire

Specifications Outside Diameter

0.36

Specifications Solid Ht

0.168

Specifications Spring Rate Mw

37.28

Specifications Spring Rate Ss

31.99

Specifications Total Coils

4.421

Specifications Type

Compression

Specifications Wire Diameter

0.038

0.36 Inch Music Wire Compression Spring
