0.472in V-Opening Die-Thane Press Brake 2V-Die for Metal Bending
0.472in V-Opening Die-Thane Press Brake 2V-Die for Metal Bending
SKU:DIE-80074e
Upgrade metal bending precision with 0.472in V-Opening Die-Thane Press Brake 2V-Die.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
0.472in V-Opening Die-Thane Press Brake 2V-Die for Metal Bending
$149.99
Quantity: 1
Claim Your Seller Account
0.472in V-Opening Die-Thane Press Brake 2V-Die for Metal Bending
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your metal bending capabilities with precision using the 0.472in V-Opening Die-Thane Press Brake 2V-Die. This specialized tool, designed for American and European style machines, ensures scratch-free bending of sheet metal with no need for alignment or shimming. Save time, money, and effort in forming pre-finished sheet metal with ease and efficiency.
Product Specifications
Specifications Angle Of V
88 º
Specifications Features

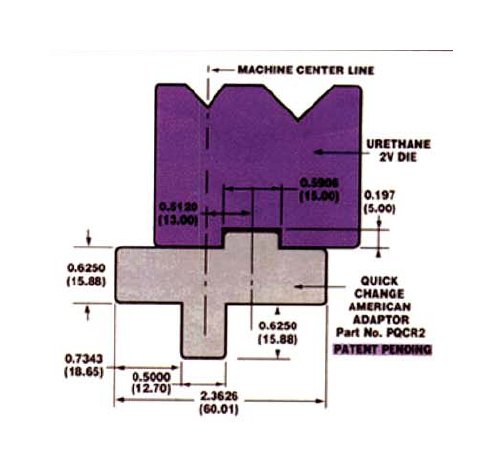

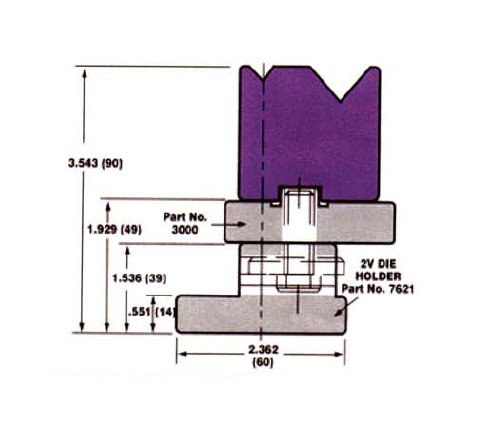

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.
Specifications Height H
1.811 in | 46 mm
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.5 mm
Specifications V Opening V1
0.472 in | 12 mm
Specifications V Opening V2
0.787 in | 20 mm
Specifications Width W
2.362 in | 60 mm
