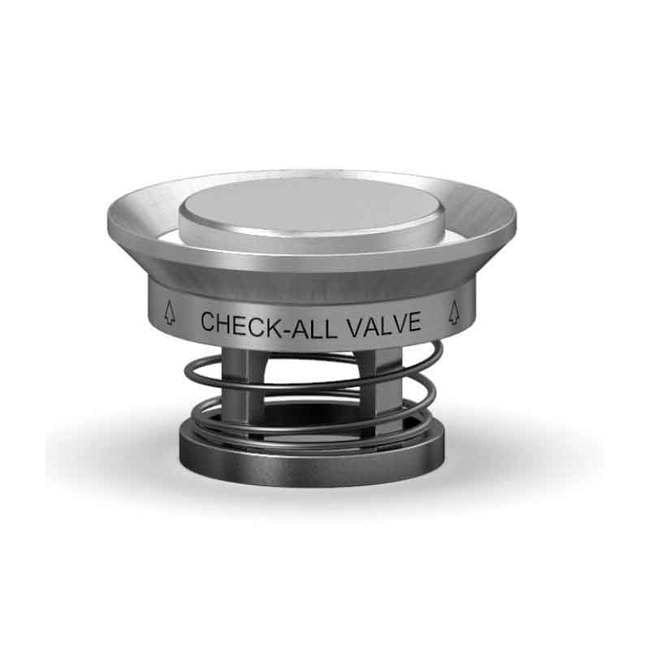

0.5 psi UV Style Union Insert Check Valve - 1/2" Nominal Pipe Size

Name: 0.5 psi UV Style Union Insert Check Valve - 1/2" Nominal Pipe Size
Brand: Check-All Valve Mfg. Co.
SKU: UVS-e60e81
Price: 69.99 USD
Availability: OutOfStock

SKU:UVS-e60e81

High-quality UV Style Union Insert Check Valve, 1/2" size, 0.500 psi cracking pressure, ideal for low pressure relief and vacuum breaker applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your threaded pipe system with the UV Style Union Insert Check Valve. Made from high-quality materials including 316 Stainless Steel, it offers reliable performance, versatile installation in ground joint unions, and a standard cracking pressure of 0.500 psi. This valve is suitable for low pressure relief or vacuum breaker applications, providing permanent visual indication with an included metal tag. With non-shock pressure ratings of up to 3000 psig, this valve ensures safety and compliance with various industry standards.

Product Specifications

Additional Information

The valve works equally well in either a horizontal or vertical position with proper spring selection. Each Union Insert valve is furnished with a metal tag, which is quickly attached to the union when the valve is installed. This provides a permanent visual notification that the union contains a check valve. The UV valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as "components of pressure equipment" as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

Note

Bore of union must be equal to I.D. of schedule 40 pipe. Use ground joint unions with 45º seat only (union not included).Made in USA.

Specifications Body Material

Specifications Body Material Availability

Specifications Certifications

European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

1/2 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

RT = Reverse Trim | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.500 psi

Specifications Valve Style

0.5 psi UV Style Union Insert Check Valve - 1/2" Nominal Pipe Size
