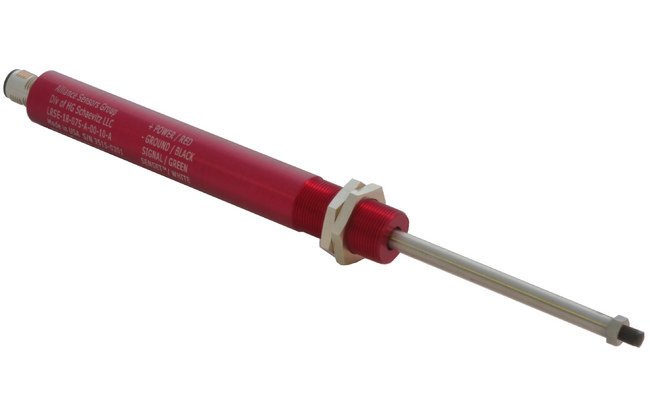

The 0.500 inch Stroke Spring Loaded Linear Sensor offers precise measurement with a 0 to 10 Volt output, ideal for applications requiring accuracy and reliability. Manufactured by Alliance Sensors Group, this sensor features an aluminum body, ensuring durability in challenging environments. With a wide temperature range of -40 to 105 ºC, <0.25% linearity, and 0.025% resolution, this sensor provides high-performance sensing. Equipped with a 1m axial cable and CE approval, it meets stringent quality and safety standards for various industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
1/2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
0.500 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
