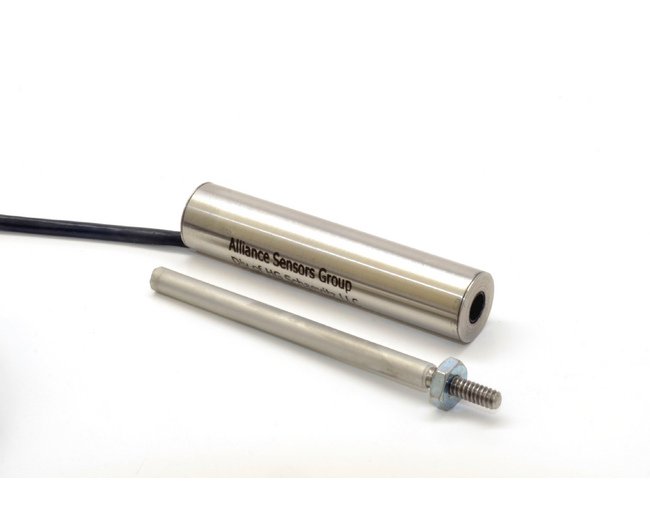

0.500 Inch Stroke DC to DC LVDT Sensor
0.500 Inch Stroke DC to DC LVDT Sensor
SKU:DCT-8ea084
Upgrade to a reliable 0.500in stroke LVDT Sensor - high precision, CE approved, and durable stainless steel construction.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
0.500 Inch Stroke DC to DC LVDT Sensor
$149.99
Quantity: 1
Claim Your Seller Account
0.500 Inch Stroke DC to DC LVDT Sensor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your measurement accuracy with the 1/2 Inch Outside Diameter LVDT Sensor. Featuring a precise 0.500 inch stroke and 0 to 10 V DC output, this sensor ensures reliable performance in temperatures ranging from -40 to 105 ºC. With stainless steel construction, CE approval, and high linearity at <0.25% of full scale, it delivers exceptional reliability and durability.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
0.500 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.500 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
