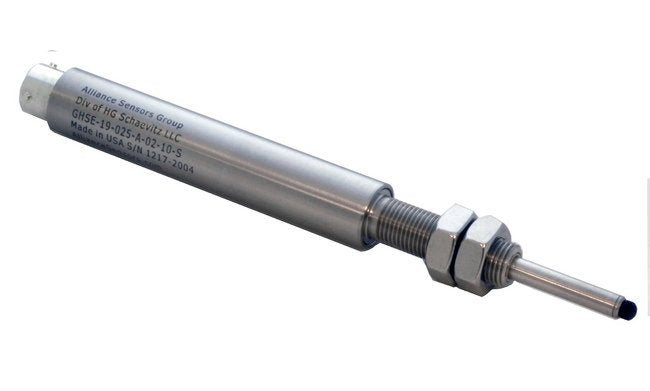

0.500" Stroke Stainless Steel Spring Loaded Linear Sensor
0.500" Stroke Stainless Steel Spring Loaded Linear Sensor
SKU:SPR-3737ce
Get accurate measurements with our 0.500" Stroke Stainless Steel Spring Loaded Linear Sensor. CE approved.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
0.500" Stroke Stainless Steel Spring Loaded Linear Sensor
$89.99
Quantity: 1
Claim Your Seller Account
0.500" Stroke Stainless Steel Spring Loaded Linear Sensor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 0.500-inch stroke stainless steel spring-loaded linear sensor by Alliance Sensors Group offers precise measurement with a 0 to 10 volt DC output. Constructed with high-quality stainless steel, this sensor operates within a wide temperature range (-40 to 105 ºC) while maintaining exceptional linearity (<0.25% of full scale) and resolution (0.025% of full scale). Approved for European Conformity (CE), this sensor features an axial power take-off connector for easy integration.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Axial Power Take-Off (PTO)
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
1/2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
0.500 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Update Rate
300 Hz
