0.5mm Minimum Grip Size Split Rivet Nut - Steel (M8 x 1.25)

Name: 0.5mm Minimum Grip Size Split Rivet Nut - Steel (M8 x 1.25)
Brand: Ornit USA
SKU: IMP-708a09
Price: 12.99 USD
Availability: OutOfStock

SKU:IMP-708a09

Durable 0.5mm Minimum Grip Size Split Rivet Nut for secure fastening in industrial applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 0.5mm Minimum Grip Size Split Rivet Nut is a durable and reliable fastening solution designed to meet the exacting standards of industrial and institutional applications. Constructed from high-quality steel with a zinc finish, this rivet nut offers exceptional strength and corrosion resistance. With a Thread Size of M8 x 1.25, Minimum Hole Size of 12.70mm, and Maximum Grip Size of 7.10mm, it ensures secure and precise installation. Available in dimensions tailored for optimal performance, it also provides options in Stainless Steel & Aluminum variants for specific requirements.

Product Specifications

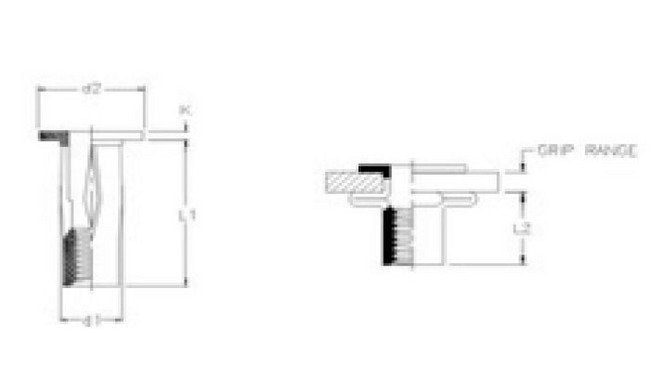

Dimensions Dimension D1

12.47 mm | 12.57 mm

Dimensions Dimension D2

18.80 mm | 19.56 mm

Dimensions Dimension K

1.45 mm | 1.7 mm

Dimensions Dimension L1

28.60 mm | 29.63 mm

Dimensions Maximum Grip Size

7.10 mm

Dimensions Maximum Hole Size

12.85 mm

Dimensions Minimum Grip Size

0.50 mm

Dimensions Minimum Hole Size

12.70 mm

Dimensions Thread Size

M8 x 1.25

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Maximum Dimension L2

19.69 mm
