0.5mm Zinc-Coated Split Rivet Nut for M10 x 1.5 Thread Size

Name: 0.5mm Zinc-Coated Split Rivet Nut for M10 x 1.5 Thread Size
Brand: Ornit USA
SKU: IMP-a71684
Price: 8.99 USD
Availability: OutOfStock

SKU:IMP-a71684

Durable 0.5mm zinc-coated split rivet nut for M10 x 1.5 thread. Versatile and reliable choice for various applications.

$8.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

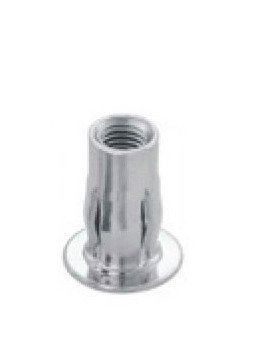

The 0.5mm minimum grip size split rivet nut by Ornit is a durable solution made of steel with a zinc finish. It features dimensions suitable for M10 x 1.5 threads, with a maximum grip size of 7.10mm. Designed with precision, it fits hole sizes ranging from 15.09mm to 15.24mm. This versatile rivet nut offers reliability and is also available in stainless steel and aluminum options, catering to various industrial needs.

Product Specifications

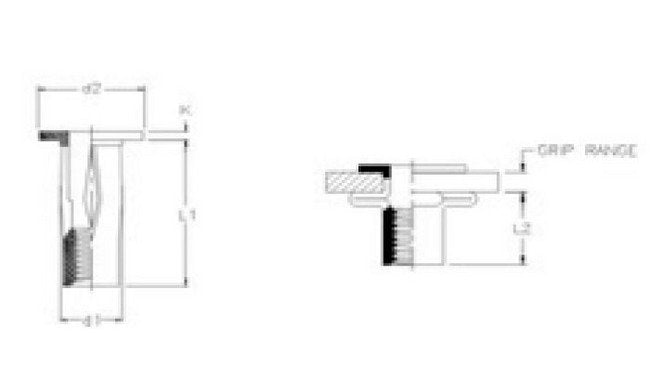

Dimensions Dimension D1

14.78 mm | 14.91 mm

Dimensions Dimension D2

21.97 mm | 22.73 mm

Dimensions Dimension K

2.11 mm | 2.36 mm

Dimensions Dimension L1

30.61 mm | 31.32 mm

Dimensions Maximum Grip Size

7.10 mm

Dimensions Maximum Hole Size

15.24 mm

Dimensions Minimum Grip Size

0.50 mm

Dimensions Minimum Hole Size

15.09 mm

Dimensions Thread Size

M10 x 1.5

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Maximum Dimension L2

19.69 mm
