0.690 Inch Open End Countersunk Head Rivet Nut
0.690 Inch Open End Countersunk Head Rivet Nut
SKU:KSE-901f4a
High-quality steel rivet nut with 0.690in L, 5/16-24 thread, ideal for precision fits & secure fastening.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
0.690 Inch Open End Countersunk Head Rivet Nut
$24.99
Quantity: 1
Claim Your Seller Account
0.690 Inch Open End Countersunk Head Rivet Nut
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

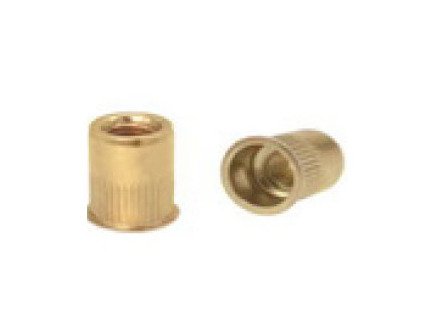

The K-Series 0.690 Inch Dimension L and 5/16-24 Thread Size Open End Countersunk Head Rivet Nut by Ornit is a top-quality fastening solution made of steel with a yellow zinc plated finish. With serration style 2 and dimensions designed for precision fits (0.027-0.150 inch grip range), these rivet nuts offer reliability and durability in various applications. Available in stainless steel and aluminum, this product meets stringent procurement standards and is ideal for government and institutional use.

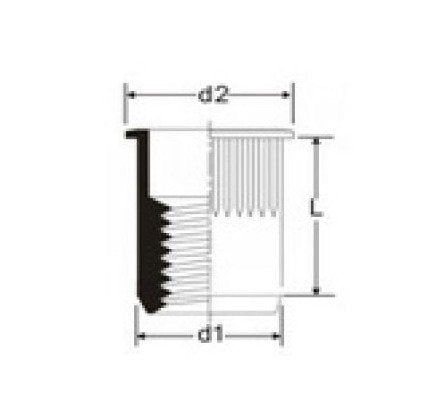

Product Specifications
Dimensions Dimension D1
0.530 in
Dimensions Dimension D2
0.595 in
Dimensions Dimension K
0.022 in
Dimensions Dimension L
0.690 in
Dimensions Hole Size
17/32 in
Dimensions Maximum Grip Range
0.150 in
Dimensions Minimum Grip Range
0.027 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
5/16-24
