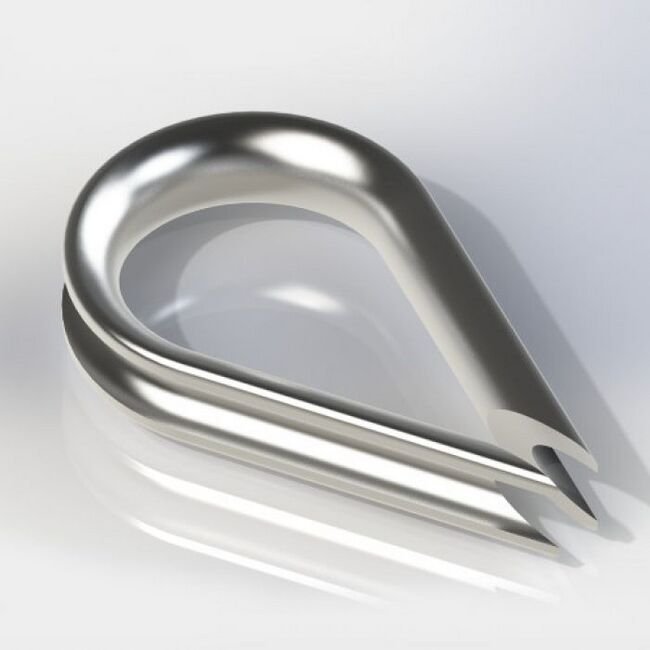

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

STE-b52d0d

N/A

$49.99
$49.99
Sale

Initiate Order

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

$49.99

Quantity: 1

Claim Your Seller Account

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

0.7 Inch (in) Opening Diameter A and 0.250 Inch (in) Maximum Mating Cable Diameter Military Speciation (MS) Plated Steel Wire Rope Thimble

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Keep your wire rope, and wire rope eyes safe with our cable thimbles. Sava is a wire rope thimble manufacturer offering cable thimbles constructed from galvanized, plated, and stainless steel. Our wire thimbles are offered in Mil-spec & commercial product grade. Get a quote for your business today, and speak to our experts about any questions you may have about galvanized, plated, or stainless steel wire rope thimble installation, thimble eyes, and wire rope clamp capacity.Thimbles are used with loop sleeves or malleable wire rope clips to protect the cable from abrasion. They help to distribute the load on the cable over a larger area, thereby increasing the life of the cable.

Product Specifications

Note
This product has a minimum quantity of 25.
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Grade
Military Speciation (MS)
Technical Specs Cable Material
Plated Steel
Technical Specs Fitting
Thimble

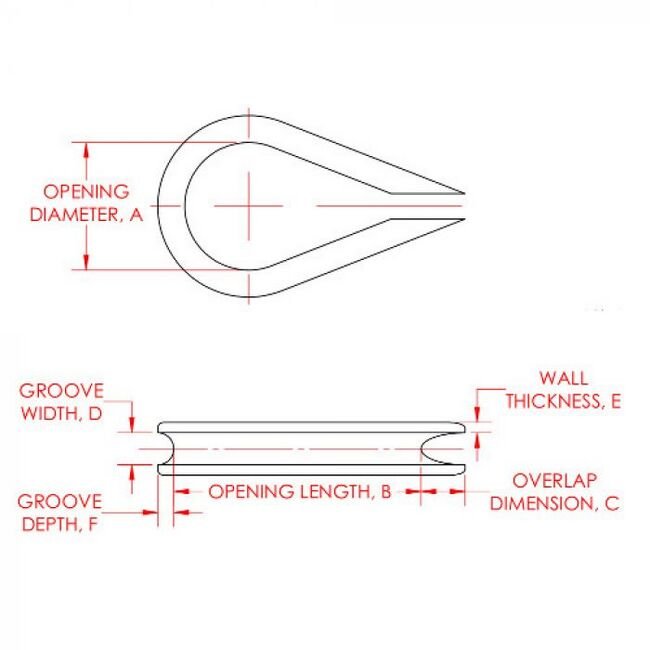

Technical Specs Groove Depth F
0.172 in
Technical Specs Groove Width D
0.266 in
Technical Specs Maximum Mating Cable Diameter
0.250 in
Technical Specs Minimum Mating Cable Diameter
0.250 in
Technical Specs Opening Diameter A
0.7 in
Technical Specs Opening Length B
1 in
Technical Specs Overlap Dimension C
0.406 in
Technical Specs Part
AN100P08
Technical Specs Wall Thickness E
0.032 in
