0.765 Inch (in) Height Military Speciation (MS) Stainless Steel Cable Fork

Name: 0.765 Inch (in) Height Military Speciation (MS) Stainless Steel Cable Fork
Brand: Carl Stahl Sava Industries
SKU: CAB-96c821
Price: 49.99 USD
Availability: OutOfStock

SKU:CAB-96c821

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MS20667 Fork Fitting is manufactured from stainless steel in accordance with the requirements of MIL-DTL-781 and is certified to those standards

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Grade

Military Speciation (MS)

Technical Specs Cable Material

Stainless Steel

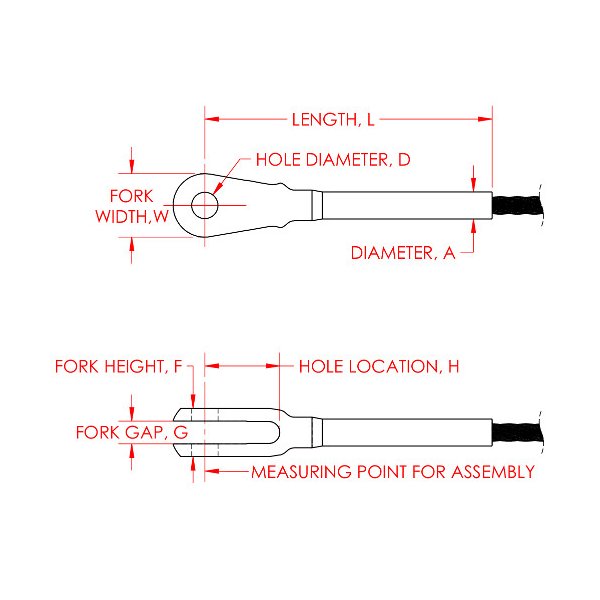

Technical Specs Diameter A

0.563 in

Technical Specs Fitting

Fork

Technical Specs Fitting Length L

4.86 in

Technical Specs Fork Gap G

0.348 in

Technical Specs Fork Height F

0.765 in

Technical Specs Fork Width U

1.265 in

Technical Specs Hole Location H

1.268 in

Technical Specs Hole Size

0.438 in

Technical Specs Maximum Mating Cable Diameter

0.313 in

Technical Specs Minimum Mating Cable Diameter

0.313 in

Technical Specs Part

MS20667 #10; FORK

0.765 Inch (in) Height Military Speciation (MS) Stainless Steel Cable Fork
