00 Series Dual Locking Board Support
00 Series Dual Locking Board Support
SKU:01C-60c9e0
Reliable dual locking board support for easy installation and repairs. ASTM and RoHS compliant. Temperature range: -40 to 185F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
00 Series Dual Locking Board Support
$49.99
Quantity: 1
Claim Your Seller Account
00 Series Dual Locking Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 00 Series Dual Locking Board Support is a reliable and versatile solution for circuit board mounting. Designed for easy hand installation, this support offers dual locking features for secure positioning and easy release during repairs. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is ASTM and RoHS compliant, ensuring high-quality performance. With a temperature range of -40 to 185F (-40 to 85C) and a durable construction, this support is ideal for various applications. Each pack contains 500 supports, providing ample supply for your needs.

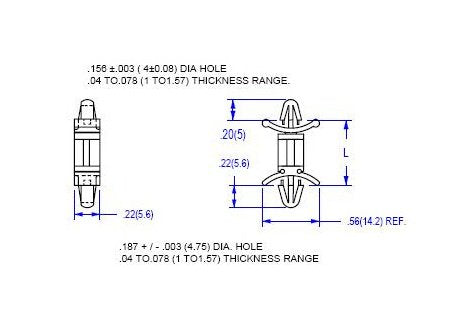

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.343 (8.7) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
