00 Series Dual Locking Board Support
00 Series Dual Locking Board Support
SKU:01C-89c600
Secure and reliable 00 Series Dual Locking Board Support for circuit board installations. UL94V-0 and RoHS compliant, easy to install, and ideal for repairs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
00 Series Dual Locking Board Support
$24.99
Quantity: 1
Claim Your Seller Account
00 Series Dual Locking Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

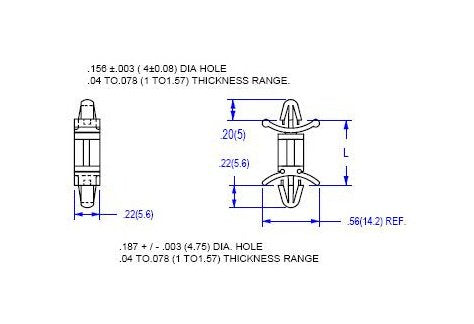

The 00 Series Dual Locking Board Support is an essential component for secure circuit board installations. Designed for easy manual installation and quick release for repairs, this support features a durable Nylon 66 construction, meeting UL94V-0 and RoHS compliance standards. With a board hole diameter of .156 inches and chassis hole diameter of .187 inches, this support is suitable for panels with a thickness of .063 inches. It operates flawlessly in temperature ranges from -40 to 185F, ensuring reliability in various environments.
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
White
Specifications Dim L
.843 (21.4) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
