00 Series Dual Locking Board Support
00 Series Dual Locking Board Support
SKU:01C-0945ef
Reliable and easy-to-install dual locking board support for circuits, ASTM and RoHS compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
00 Series Dual Locking Board Support
$24.99
Quantity: 1
Claim Your Seller Account
00 Series Dual Locking Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

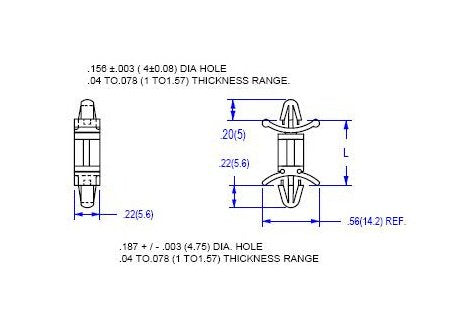

The 00 Series Dual Locking Board Support is a versatile solution for circuit board installations. Made of UL94V-2 Nylon 66 material, it boasts a temp range of -40 to 185F, ensuring durability in various environments. This support features easy manual installation and is releasable for repairs, making maintenance hassle-free. With a board hole diameter of .156 inches and chassis hole diameter of .187 inches, it offers reliable support for panels up to .063 inches thick. ASTM and RoHS compliant, this support meets stringent industry standards for quality and safety.
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
Natural
Specifications Dim L
.968 (24.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
