00 Series Dual Locking Nylon Board Support
00 Series Dual Locking Nylon Board Support
SKU:01C-2a09be
Securely support circuit boards with our durable Nylon 66 board supports. Easy installation, ASTM D 4066 & RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
00 Series Dual Locking Nylon Board Support
$29.99
Quantity: 1
Claim Your Seller Account
00 Series Dual Locking Nylon Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 00 Series Dual Locking Nylon Board Support offers secure installation with dual locking features, allowing for easy manual installation and quick release for repairs. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066 and PA0113 standards and is RoHS compliant. With a temperature range of -40 to 185F, it ensures durability in various environments. Each pack contains 500 supports, making it ideal for bulk applications in circuit board setups.

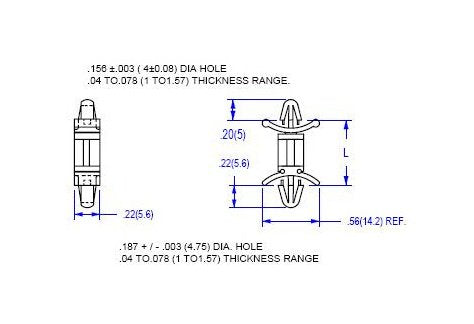

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Color
White
Specifications Dim L
.468 (11.9) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
