00 Series Locking Wire Saddle - Wire Routing Device
00 Series Locking Wire Saddle - Wire Routing Device
SKU:03W-cc35da
Securely manage wires with our durable 00 Series Locking Wire Saddle. Releasable design, multiple hole styles/sizes, RoHS compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
00 Series Locking Wire Saddle - Wire Routing Device
$12.99
Quantity: 1
Claim Your Seller Account
00 Series Locking Wire Saddle - Wire Routing Device
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

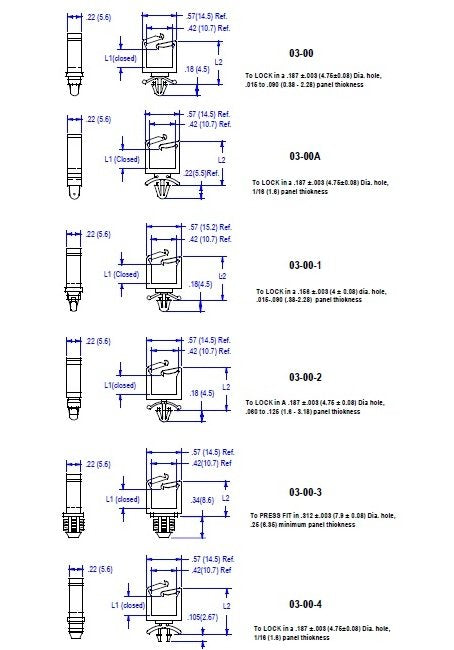

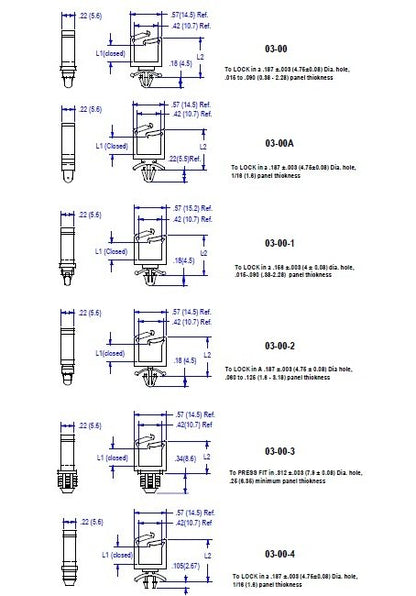

The 00 Series Locking Wire Saddle offers a unique locking design that ensures a secure attachment to the chassis while remaining easily releasable, making it ideal for various wire routing applications. Available in multiple mounting hole styles and sizes, this nylon 66 (UL94V-2) saddle is RoHS compliant, offering durability and safety. With precise specifications like L1 of 1.04 inches, L2 of 1.47 inches, hole diameter of .156 inches, and chassis thickness ranging from .015 to .090 inches, this product meets the strictest industry standards for wire management.
Product Specifications
Specifications Chassis Thickness
.015 - .090 (.38-2.28) inches (mm)
Specifications Hd Hole Diameter
.156 (4) inches (mm)
Specifications L1 Ref
1.04 (26.6) inches (mm)
Specifications L2 01538
1.47 (37.3) inches (mm)
