0000100300 FUA Extraction Fans
0000100300 FUA Extraction Fans
SKU:FAN-231bf4
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
0000100300 FUA Extraction Fans
$49.99
Quantity: 1
Claim Your Seller Account
0000100300 FUA Extraction Fans
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

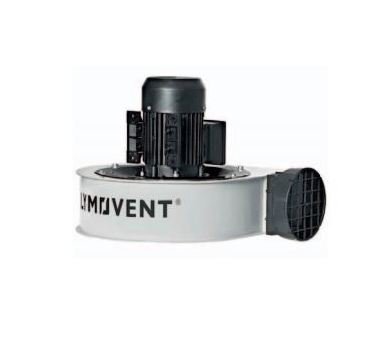

The FUA is an extraction fan that is specially designed to remove welding and other harmful fumes as dust, oil mist and exhaust gases.The fan is intended and designed for mounting to extraction arms and filter units.The FUA 60Hz is an extraction fan that is specially designed to remove exhaust gases, as well as welding and other fumes, dust and oil mist.The fan is intended and designed for mounting to extraction arms, filter units and vehicle exhaust extraction systems or can be used as a central fan.Designed for direct mounting on hose reels and for use as central fans in fire systems
Product Specifications
Shipping Data Gross Weight
32.9 lb | 14.9 kg
Shipping Data Packing Dimensions
18.5 x 18.5 x 20.3 Inch | 470 x 470 x 515 mm
Specifications Applications
The FUA is intended to be used for the following applications: MIG-MAG/GMAW Welding TIG Welding FCAW Welding Stick/MMAW Welding Vehicle Exhaust Extraction Systems
Specifications Connection Voltage
230 V | 1~ | 50 Hz
Specifications Design Conditions
At Sea Level: 20 ºC | At Sea Level: 68 ºF
Specifications Fan Material
Aluminum
Specifications Fan Type
Radial
Specifications Housing Color
Gray (RAL 7035)
Specifications Housing Materials
Sheet Metal
Specifications Maximum Airflow Temperature
80 ºC | 176 ºF
Specifications Motor Color
Black (RAL 9005)
Specifications Motor Design
IEC 60072
Specifications Net Weight
12.8 kg | 28.2 lb
Specifications Type
FUA-1300
