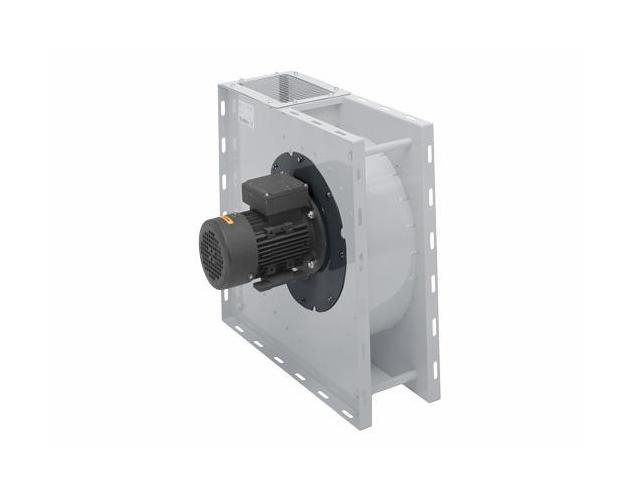

TEV (The Energy saving Ventilator) is an extraction fan that is designed to remove welding fumes and other harmful fumes such as dust, oil mist and vehicle exhaust gases.The TEV fan is intended and designed for mounting to a central extraction system.The TEV 60Hz is a central extraction fan that is equipped with a lightweight aluminium impeller, making it suited to exhaust gases, volatile fumes and dust. Matched inlet and outlet areas, together with optimized impellers, ensure even airflow, high capacity and low noise level.The fan is intended and designed for mounting filter units and vehicle exhaust extraction systems.The TEV series ventilation fans are designed for use as central fans.

Product Specifications

Shipping Data Gross Weight

132 lb | 60 kg

Shipping Data Packing Dimensions

34 x 30 x 33 Inch | 860 x 750 x 825 mm

Specifications Applications

The TEV Is intended to be used for the following applications: MIG-MAG/GMAW Welding TIG Welding FCAW Welding Stick/MMAW Welding Vehicle Exhaust Extraction Systems

Specifications Connection Voltage

230 to 400 V | 3~ | 50 Hz

Specifications Design Conditions

At Sea Level: 20 ºC | At Sea Level: 68 ºF

Specifications Discharge Position

Rotatable 90 º

Specifications Fan Material

Aluminum

Specifications Fan Type

Radial

Specifications Housing Color

Gray (RAL 7035)

Specifications Housing Materials

Sheet Metal

Specifications Maximum Airflow Temperature

80 ºC | 176 ºF

Specifications Motor Color

Black (RAL 9005)

Specifications Motor Design

IEC 60072

Specifications Net Weight

51 kg | 112 lb

Specifications Type

TEV-585
