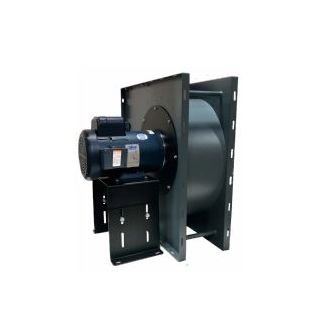

TEV (The Energy saving Ventilator) is an extraction fan that is designed to remove welding fumes and other harmful fumes such as dust, oil mist and vehicle exhaust gases.The TEV fan is intended and designed for mounting to a central extraction system.The TEV 60Hz is a central extraction fan that is equipped with a lightweight aluminium impeller, making it suited to exhaust gases, volatile fumes and dust. Matched inlet and outlet areas, together with optimized impellers, ensure even airflow, high capacity and low noise level.The fan is intended and designed for mounting filter units and vehicle exhaust extraction systems.The TEV series ventilation fans are designed for use as central fans.

Product Specifications

Shipping Data Gross Weight

377.0 lb | 171 kg

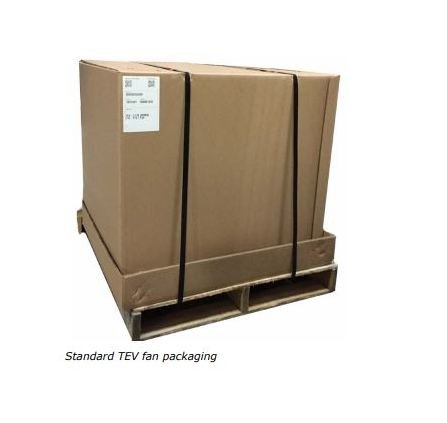

Shipping Data Packing Dimensions

31.9 x 47.2 x 44.9 Inch | 81 x 119.2 x 114 cm

Specifications Applications

The TEV Is intended to be used for the following applications: MIG-MAG/GMAW Welding TIG Welding FCAW Welding Stick/MMAW Welding Vehicle Exhaust Extraction Systems

Specifications Connection Voltage

208 to 230/460 V | 3 ph | 60 Hz

Specifications Design Conditions

At Sea Level: 20 ºC | At Sea Level: 68 ºF

Specifications Discharge Position

Rotatable 90 º

Specifications Fan Type

Centrifugal

Specifications Housing Color

Gray (RAL 7011)

Specifications Housing Materials

Sheet Metal

Specifications Impeller

Backward Inclined

Specifications Impeller Material

Aluminum

Specifications Maximum Airflow Temperature

80 ºC | 176 ºF

Specifications Motor Design

NEMA

Specifications Net Weight

157.5 kg | 347.2 lb

Specifications Type

TEV-745
