0000109660 90155-1011 REN Rubber Nozzles

Name: 0000109660 90155-1011 REN Rubber Nozzles
Brand: Plymovent Corp.
SKU: NOZ-2c6f31
Price: 49.99 USD
Availability: OutOfStock

SKU:NOZ-2c6f31

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

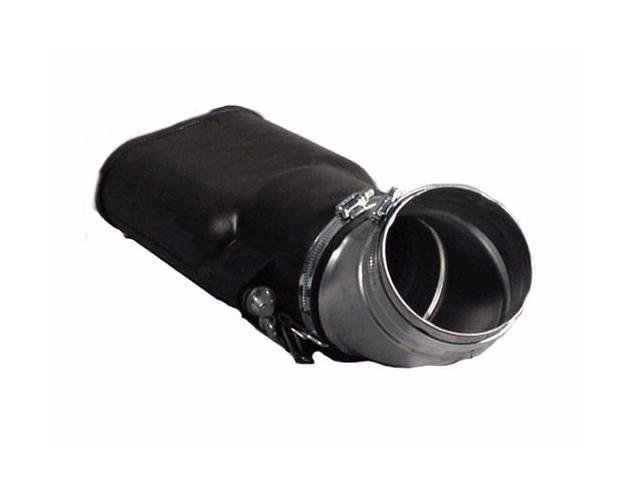

The REN is highly suitable for Plymovent fixed extractors and exhaust reels. The REN is designed to take in ambient cooling air thereby reducing the exhaust emission temperature.The nozzle is made up of a powder coated metal pipe and moulded, high temperature resistant rubber. A CO outlet is provided for measuring CO emissions.Rubber nozzle designed to slip over the exhaust pipe and stay connected by a friction seal.

Product Specifications

Specifications Applications

The REN is intended to be used for the following applications: Fleet maintenance service facilities and auto service garages in which gasoline or diesel-powered vehicles are generating hazardous exhaust fumes.

Specifications Color

Black (Powder Coated)

Specifications Co Outlet

Contains a CO Outlet to measure CO Emissions

Specifications Diameter

3 Inch | 4 Inch | 5 Inch | 6 Inch | 8 Inch | 100 mm | 125 mm | 150 mm | 200 mm | 75 mm

Specifications Dimension

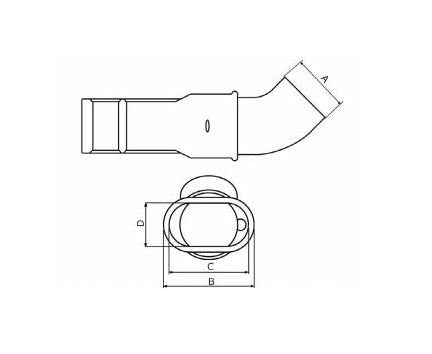

Hose Connection: Ø4 Inch | Oval is 3.6 x 6.1 Inch | Hose Connection: 100 mm | Oval is 91 x 155 mm

Specifications Features

Metal Construction Spring-Loaded Rubber Lip That Closes When not in Use Ideal for Dynotesting (In Which a Chassis Dynamometer is Used to Measure Engine and Wheel Horsepower, Intake Temperatures and More) and Heavy-Duty Trucks. Pulls In Ambient Cooling Air, Reducing The Exhaust Emission Temperature.

Specifications Material

Metal Tube / Nitrile Butadiene Rubber (NBR)

Specifications Notes

*The 3 Inch (75 mm) is not available in North America.

Specifications Optional Damper

An Optional Damper is included for the REN Nozzle

Specifications Type

REN-100-115

Specifications Weight

1.9 lb | 0.85 kg
