0000110166 50335-1011 Exhaust Gas (EG2) Hose

Name: 0000110166 50335-1011 Exhaust Gas (EG2) Hose
Brand: Plymovent Corp.
SKU: HOS-dfac7a
Price: 49.99 USD
Availability: OutOfStock

SKU:HOS-dfac7a

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

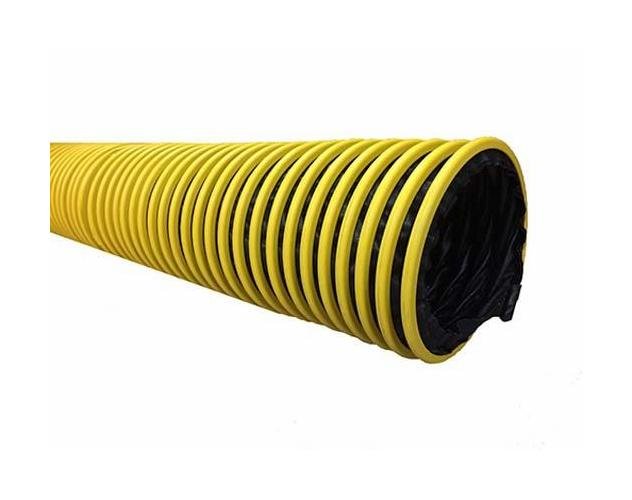

The Exhaust Gas Hose (EG2) is used with Plymovent vehicle exhaust systems. Designed to extract hazardous fumes generated by gasoline and diesel engines, EG2 is made up of an external steel helix and composite fabric that can endure exhaust gas temperatures of up to 350°F (177°C) continuous.Intermittently, the EG2 hose can endure 400°F (204°C) provided there is approximately 50% of fresh air supplied.Please note this hose is available only in North America.Flame resistant exhaust gas hose.

Product Specifications

Shipping Data Country Of Origin

United States

Shipping Data Gross Weight

See Downloadable Asset

Specifications Applications

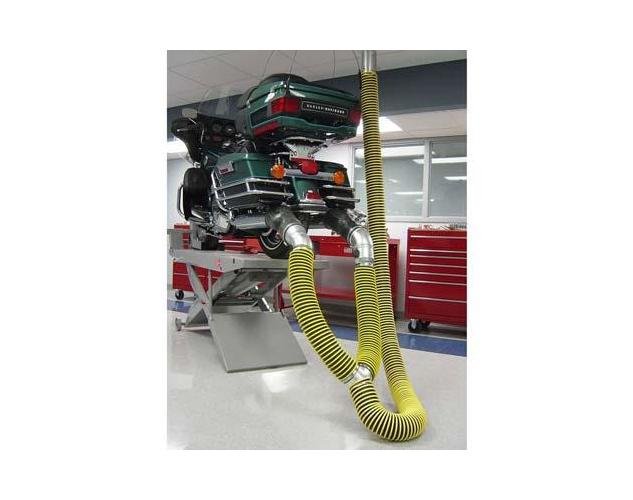

The EG2 is intended to be used for the following applications: Fleet maintenance service facilities, vo-tech centers, mass transit service garages and other facilities in which heavy-duty vehicles are generating hazardous exhaust fumes.

Specifications Diameter

4 to 8 Inch | 100 to 200 mm

Specifications Dimension

Ø5 Inch | 125 mm

Specifications Features

Abrasion Resistant Extremely Flexible Super Lightweight Vibration Resistant Highly Flexible and Compressible (1:5 Ratio) High Resistance to Mechanical Loadings Flame Retardant (Designed To Handle Flammable Dust and Particles)

Specifications Hose Wall Material

Neoprene-Coated Polyester Fabric

Specifications Length

32 ft | 10 m

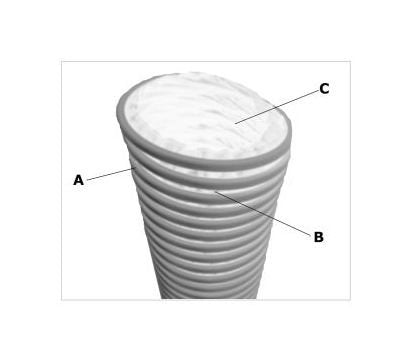

Specifications Spiral Material

External Helix Made Up Galvanized Steel with Additional Plastic Abrasion (Yellow)

Specifications Weight

20.4 lb | 9.3 kg
