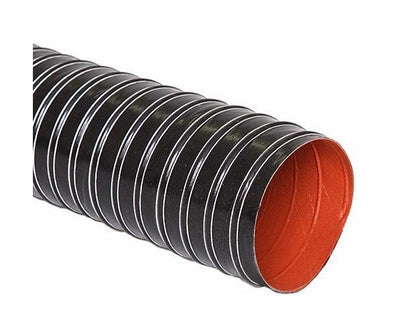

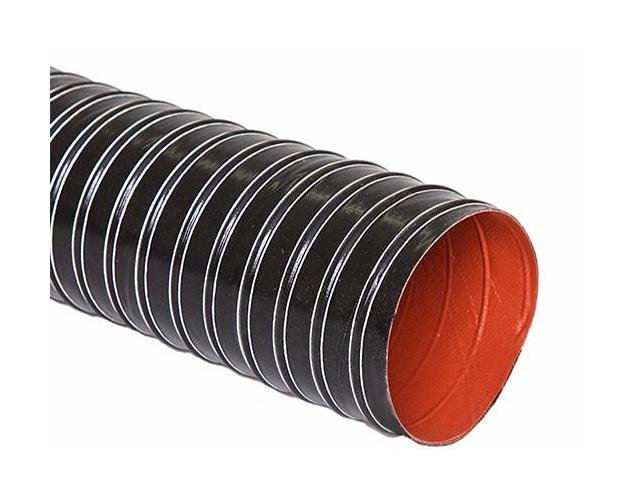

The Plymovent Silicone/Nomex®/Fiberglass Hose (SNF2) is a light-weight, high temperature double ply exhaust hose that is ideally suited for Plymovent hose reels or fixed extractor units.The SNF2 hose can endure temperatures of up to 600°F (315°C) continuous. Intermittently, the SNF2 hose can endure 1250°F (670°C), provided fresh air is supplied. The SNF2 hose is designed to extract hazardous fumes generated by gasoline and diesel engines.Please note this hose is available only in North America.Light-weight, high temperature, double-ply exhaust hose.

Product Specifications

Shipping Data Country Of Origin

United States

Shipping Data Gross Weight

See Downloadable Asset

Specifications Applications

The SNF2 is intended to be used for the following applications: Fleet maintenance service facilities and mass transit service garages in which heavy-duty vehicles are generating high-temperature exhaust fumes.

Specifications Diameter

4 to 8 Inch | 100 to 200 mm

Specifications Dimension

Ø4 Inch | 100 mm

Specifications Features

Vibration Resistant Flame-Resistant to UL94 Criteria Compression Ratio is 5:1 Nomex® Fabric Material Increases Flexibility, Material Life and Abrasion Resistance Internal Spring Steel Wire Helix Allows for a Tight Bending Radius While Maintaining a Smooth Interior Ideal for Situations, Which Call For Flexing, as with Hose Reels and Fixed Extractor Systems Resistant to Most Oils, Solvents, Ozone, Water, Fungus and Alkalis

Specifications Hose Wall Material

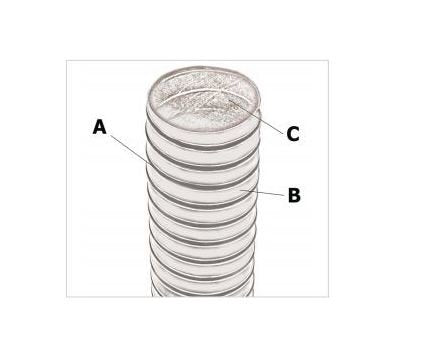

Double-Ply Fabric Hose with an Iron Oxide Silicone Coated Fiberglass Inner Layer (Red) and a Silicone Coated Nomex® Outer Layer (Black)

Specifications Length

Custom Length in 12 foot (3.7 m) increments

Specifications Spiral Material

Spring Steel Wire Helix and External Filament Fiberglass Cord (Black)

Specifications Weight

0.50 lb/ft | 0.75 kg/m
