01 Series Circuit Board Supports - .138 Board Hole x .138 Chassis Hole

Name: 01 Series Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-6026cd
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-6026cd

Securely install and release these circuit board supports with a unique locking design. RoHS compliant and made of Nylon 66 material.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

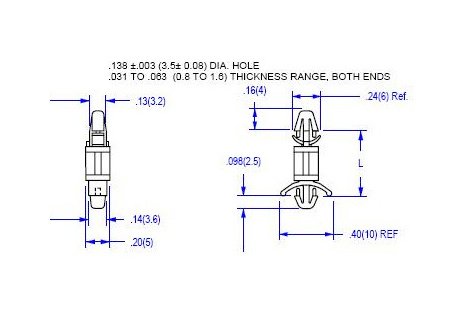

The 01 Series Circuit Board Supports with .138 Board Hole x .138 Chassis Hole offer effortless manual installation with a unique locking design for secure positioning and easy release. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet stringent ASTM D 4066 and RoHS compliance. With a Mounting Hole Diameter of .138 inches and a Temperature Range of -40 to 185F, they are suitable for diverse applications. Each pack contains 500 supports, ensuring reliable supply for your projects.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.413 (10.5) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
