01 Series Circuit Board Supports - .138 Board Hole x .138 Chassis Hole

Name: 01 Series Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-dc074e
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-dc074e

Secure and versatile circuit board supports with .138 board/chassis holes. Easy installation, RoHS compliant, and temperature-resistant from -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

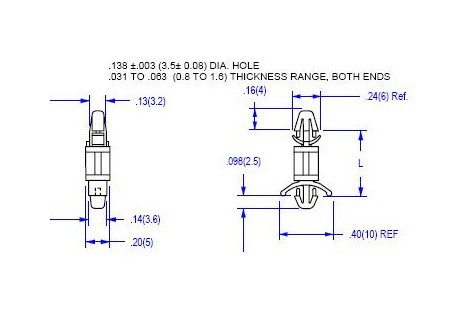

The 01 Series Circuit Board Supports with .138 board hole and .138 chassis hole are designed for easy manual installation with a unique locking mechanism for secure yet releasable fastening. Made of Nylon 66 UL94V-2 material, these supports come in a pack of 500 pieces, meeting RoHS compliance and with the option for UL94V-0. With a temperature range of -40 to 185F, these supports offer durability and versatility for various applications in electronic assemblies.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.18 (30.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

01 Series Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
