01 Series Nylon Board Supports - .138" Diameter

Name: 01 Series Nylon Board Supports - .138" Diameter
Brand: All Electronics Hardware
SKU: 01C-d070b1
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-d070b1

Securely position circuit boards with ease using the 01 Series Nylon Board Supports. Made of durable Nylon 66 UL94V-2 material, these supports offer a secure fit with a unique locking design.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

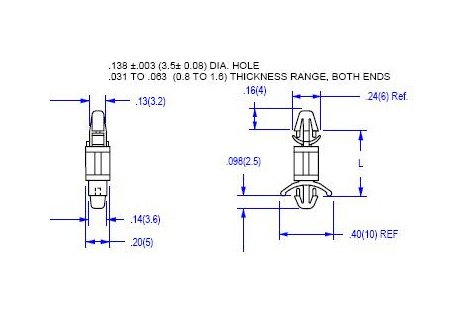

The 01 Series Nylon Board Supports with .138" Board Hole x .138" Chassis Hole are designed for easy manual installation with a unique locking mechanism for secure positioning while allowing for easy release. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports come in a pack of 500. They offer a temperature range of -40 to 185F (-40 to 85C) and comply with RoHS regulations. With a mounting hole diameter of .138 inches (3.5mm), these supports are ideal for circuit board applications. The supports meet ASTM D 4066 standards and ensure reliable performance for various industrial needs.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.539 (13.7) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

01 Series Nylon Board Supports - .138" Diameter
