01 Series Nylon Circuit Board Supports
01 Series Nylon Circuit Board Supports
SKU:01C-ec2563
Secure and durable 01 Series Nylon Circuit Board Supports - ideal for easy installation and positive locking in board and chassis holes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
01 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
01 Series Nylon Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

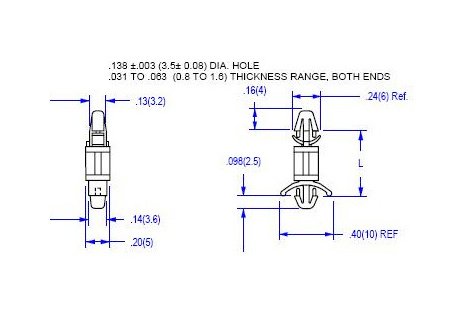

The 01 Series Nylon Circuit Board Supports feature a unique locking design for easy installation and secure fastening in both board and chassis holes. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and have a temperature range of -40 to 185F (-40 to 85C). With a mounting hole diameter of .138 (3.5mm) on both ends, they come in a pack of 500 for convenience. Ideal for various applications, these supports provide reliable stability and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Chassis Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.787 (20.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-2
