01 Series Nylon Circuit Board Supports, .138 Board Hole x .138 Chassis Hole

Name: 01 Series Nylon Circuit Board Supports, .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-ff54eb
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ff54eb

Secure, versatile Nylon Circuit Board Supports with .138 Board Hole x .138 Chassis Hole, UL94V-2 material, and RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

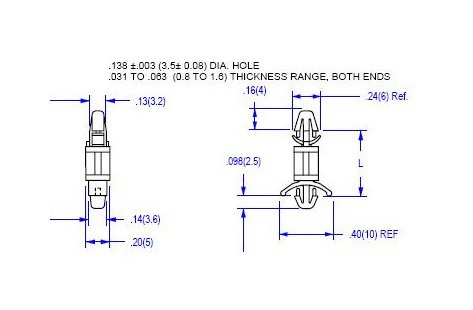

The 01 Series Nylon Circuit Board Supports feature a unique locking design for easy hand installation, ensuring a secure fit in both board and chassis holes. Made from UL94V-2 Nylon 66 material, these supports are RoHS compliant and offer a temperature range of -40 to 185F. With a mounting hole diameter of .138 (3.5mm) on both ends, these supports come in a convenient packaging of 500 pieces per bag. Consider the UL94V-0 option for enhanced fire safety. Perfect for various applications requiring reliable and durable circuit board support solutions.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.476 (12.1) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
