01 Series Nylon Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
01 Series Nylon Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
SKU:01C-03d75a
Secure and versatile Nylon Circuit Board Supports for easy installation and reliable positioning. RoHS compliant with a wide temperature range. Pack of 500.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
01 Series Nylon Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
01 Series Nylon Circuit Board Supports - .138 Board Hole x .138 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

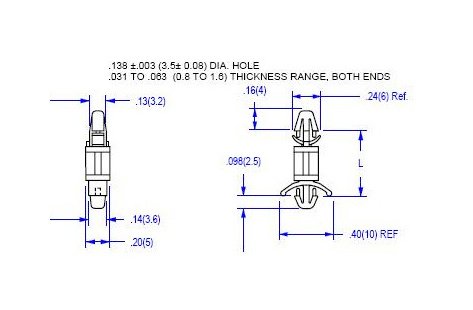

The 01 Series Nylon Circuit Board Supports feature a unique locking design for easy hand installation and secure positioning in both board and chassis holes. Made of Nylon 66 UL94V-2 material, these supports are RoHS compliant and have a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 supports, with options for UL94V-0 material by adding 'X' to the part number. With a mounting hole diameter of .138 (3.5mm) on both ends, these supports meet stringent quality and safety standards, providing reliable support for circuit boards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Chassis Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.661 (16.8) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-2
