01 Series Nylon Circuit Board Supports - .138 Hole Diameter

Name: 01 Series Nylon Circuit Board Supports - .138 Hole Diameter
Brand: All Electronics Hardware
SKU: 01C-d691be
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-d691be

Secure and release with ease. Nylon supports with .138 hole diameter. RoHS compliant, ASTM D 4066 certified.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

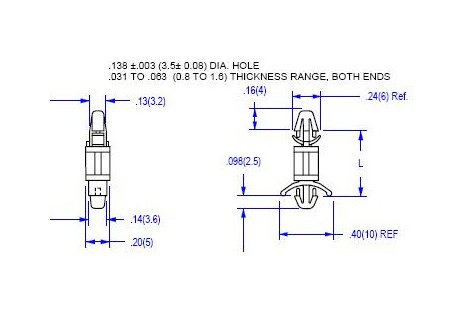

The 01 Series Nylon Circuit Board Supports with a .138 Board Hole x .138 Chassis Hole are designed for easy manual installation with a unique locking mechanism that ensures a secure fit while allowing for easy release. Made of Nylon 66 UL94V-2 material (also available in UL94V-0), these supports meet RoHS compliance and have a temperature range of -40 to 185F (-40 to 85C). With a Mounting Hole Diameter of .138 (3.5mm) on both ends, these supports come in a pack of 500. The supports are ASTM D 4066 and UL File No. E53664 certified, providing durability and reliability for a variety of applications.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.350 (8.9) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

01 Series Nylon Circuit Board Supports - .138 Hole Diameter
