01 Series Nylon Circuit Board Supports with .138 Board Hole x .138 Chassis Hole

Name: 01 Series Nylon Circuit Board Supports with .138 Board Hole x .138 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f3edb8
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f3edb8

Secure and releasable Nylon Circuit Board Supports with .138 Board Hole x .138 Chassis Hole. UL94V-2 material. Pack of 500.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

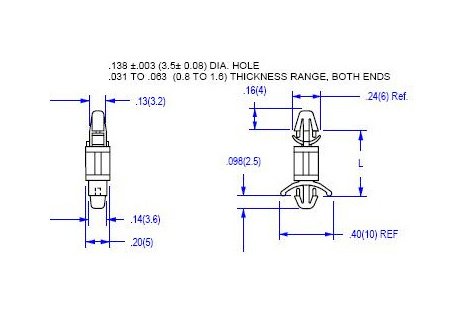

The 01 Series Nylon Circuit Board Supports with .138 Board Hole x .138 Chassis Hole offer easy manual installation with a unique locking design that ensures a secure fit while remaining easily releasable. With a mounting hole diameter of .138 inches (3.5mm) on both ends, these supports come in a pack of 500. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available on request), these supports are UL File No. E53664, ASTM D 4066, RoHS compliant, and operate within a temperature range of -40 to 185F (-40 to 85C). The supports are designed to accommodate board thickness ranging from .031 to .063 inches (.8 to 1.6mm) and chassis thickness within the same range.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.602 (15.3) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
