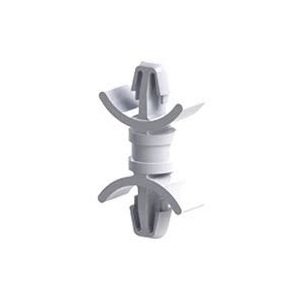

01A Series Dual-Locking Board Support
01A Series Dual-Locking Board Support
SKU:01C-e444bb
Dual-Locking Board Support with .137 Mounting Holes, Nylon 66 Material, RoHS Compliant, UL Certified, for .031-.08 Chassis Thickness.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
01A Series Dual-Locking Board Support
$24.99
Quantity: 1
Claim Your Seller Account
01A Series Dual-Locking Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

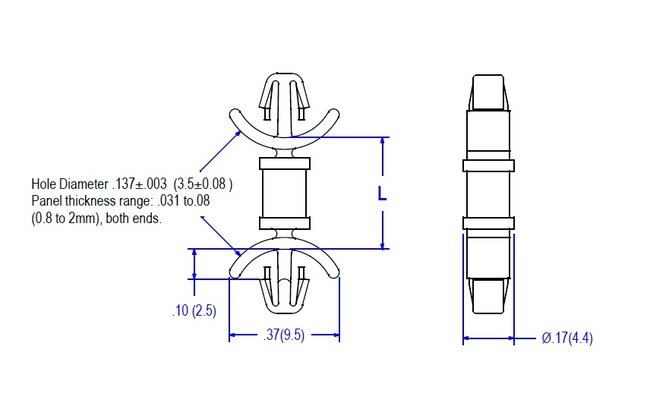

The 01A Series Dual-Locking Board Support features a mounting hole diameter of .137 (3.5mm) for both ends, suitable for .031-.08 Chassis Thickness applications. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), these board supports are releasable for easy repairs. With UL File No. E41938 and RoHS compliance, they offer a temperature range of -40 to 185F (-40 to 85C), meeting ASTM D 4066 and PA0113 standards.
Product Specifications
Specifications L 015
.312 (7.9) inches (mm)
