02 Series Edge Board Mount .187 Chassis Hole - Nylon 66 UL94V-2

Name: 02 Series Edge Board Mount .187 Chassis Hole - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-4daa75
Price: 35.99 USD
Availability: OutOfStock

SKU:01C-4daa75

Effortlessly install this durable Nylon 66 UL94V-2 edge board mount to save time and enhance assembly efficiency.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 02 Series Edge Board Mount x .187 Chassis Hole is designed for easy hand installation, significantly reducing assembly time. Each unit is made from durable Nylon 66 UL94V-2 material, ensuring reliability and longevity. With ASTM D 4066 and PA111 certifications, this product offers exceptional performance in a wide temperature range from -40 to 185F (-40 to 85C). RoHS compliant and customizable to UL94V-0 standard, this mount meets stringent industry requirements.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

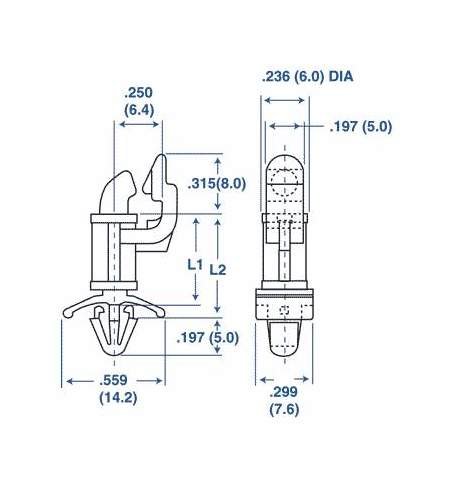

Specifications Dim L1

.626 (15.9) inches (mm)

Specifications Dim L2

.717 (18.2) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

02 Series Edge Board Mount .187 Chassis Hole - Nylon 66 UL94V-2
