02 Series Edge Board Mount with .187 Chassis Hole

Name: 02 Series Edge Board Mount with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-b5083b
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-b5083b

Effortlessly install the 02 Series Edge Board Mount with .187 Chassis Hole. Made of Nylon 66 UL94V-2, RoHS compliant, and suitable for a temperature range of -40 to 185F.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

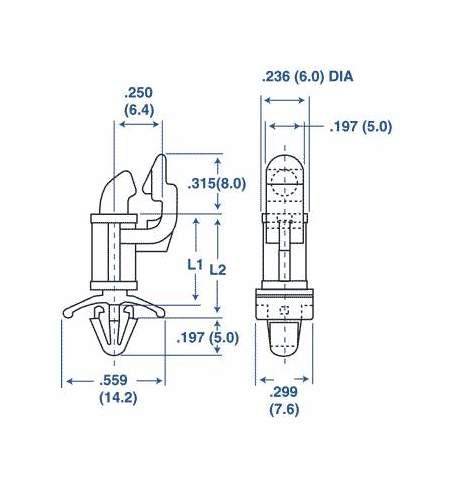

The 02 Series Edge Board Mount with .187 Chassis Hole offers effortless hand installation, reducing assembly time for increased efficiency. Made from high-quality Nylon 66 UL94V-2 material (UL94V-0 available), this product complies with UL File No. E53664 and ASTM D 4066, PA111 standards. RoHS compliant and designed for a temperature range of -40 to 185F (-40 to 85C), this support is durable and reliable. With dimensions of L1: .878 inches, L2: .969 inches, and suitable for panel thickness of .063 inches and chassis thickness ranging from .020 to .079 inches, this product is ideal for a variety of applications.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.878 (22.3) inches (mm)

Specifications Dim L2

.969 (24.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

02 Series Edge Board Mount with .187 Chassis Hole
