02 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Support

Name: 02 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-28e3c7
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-28e3c7

Effortlessly install the 02 Series Edge Board Mount & save time. UL94V-2 Nylon 66, ASTM compliant, RoHS & UL certified. Temp range: -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 02 Series Edge Board Mount x .187 Chassis Hole is a versatile solution designed for easy manual installation, reducing assembly time significantly. Packaged in quantities of 500/bag, this support is constructed from durable Nylon 66 material (UL94V-2 standard, with UL94V-0 available upon request). Compliant with UL File No. E53664 and ASTM D 4066, PA111, this product ensures high-quality performance and reliability. With a temperature range of -40 to 185F (-40 to 85C), it offers resilience in diverse operational environments.

Product Specifications

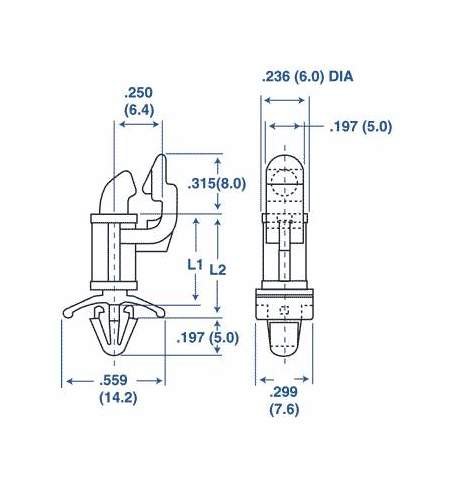

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.878 (22.3) inches (mm)

Specifications Dim L2

.969 (24.6) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)

02 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Support
