02 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Supports

Name: 02 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-735cd4
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-735cd4

Effortlessly install the 02 Series Edge Board Mount for quick assembly. Compliant with ASTM standards, RoHS, and UL ratings. Perfect for various temperature ranges.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 02 Series Edge Board Mount is designed for easy manual installation, significantly reducing assembly time. Each pack contains 500 mounts made of durable Nylon 66 material, with UL94V-2 fire rating (UL94V-0 available upon request). These mounts comply with ASTM D 4066, PA111 standards, and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they offer reliability in various environments, meeting the demands of both consumer and institutional needs.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

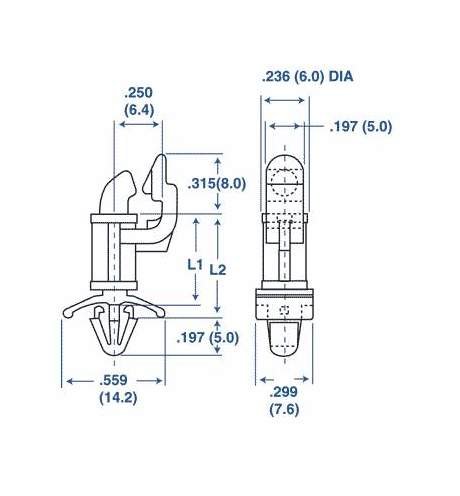

Specifications Dim L1

1.00 (25.4) inches (mm)

Specifications Dim L2

1.09 (27.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)
