02 Series Edge Board Mount with .187 Chassis Hole, Nylon 66 UL94V-0

Name: 02 Series Edge Board Mount with .187 Chassis Hole, Nylon 66 UL94V-0
Brand: All Electronics Hardware
SKU: 01C-920625
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-920625

Efficiently secure circuit boards with 02 Series Edge Board Mount. Easy installation, ASTM D 4066, RoHS compliant. Ideal for panel thickness .063 inches, chassis .020-.079 inches.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your circuit board assembly efficiency with the 02 Series Edge Board Mount. Made of durable Nylon 66 UL94V-0 material, this mount offers easy hand installation, reducing assembly time significantly. With ASTM D 4066 and RoHS compliance, it ensures reliability in a wide temperature range from -40 to 185F. Available in white color, with precise dimensions and compatible with panel and chassis thicknesses ranging from .020 to .079 inches, this mount is a versatile choice for secure board support.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

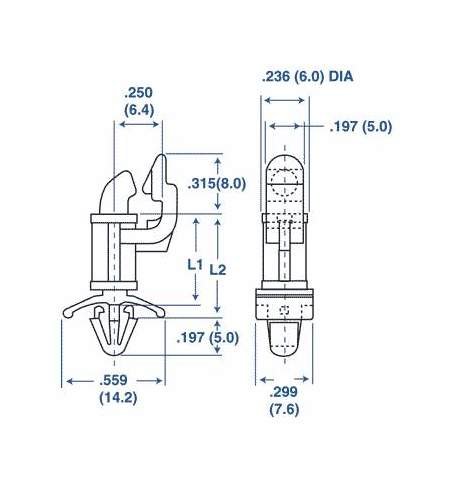

Specifications Dim L1

.626 (15.9) inches (mm)

Specifications Dim L2

.717 (18.2) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)
