02 Series Edge Board Mount with .187 Chassis Hole - Nylon 66 UL94V-0

Name: 02 Series Edge Board Mount with .187 Chassis Hole - Nylon 66 UL94V-0
Brand: All Electronics Hardware
SKU: 01C-fde808
Price: 15.99 USD
Availability: OutOfStock

SKU:01C-fde808

Effortlessly install the 02 Series Edge Board Mount for efficient assembly. Made from Nylon 66 UL94V-0, RoHS compliant, and ASTM certified.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 02 Series Edge Board Mount x .187 Chassis Hole offers effortless installation by hand, streamlining assembly processes and saving valuable time. Each piece is crafted from high-quality Nylon 66 UL94V-0 material, ensuring durability and safety. With ASTM D 4066 and PA111 certifications, this product is compliant with RoHS standards and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Upgrade to UL94V-0 material by adding an 'X' to the part number for enhanced fire resistance.

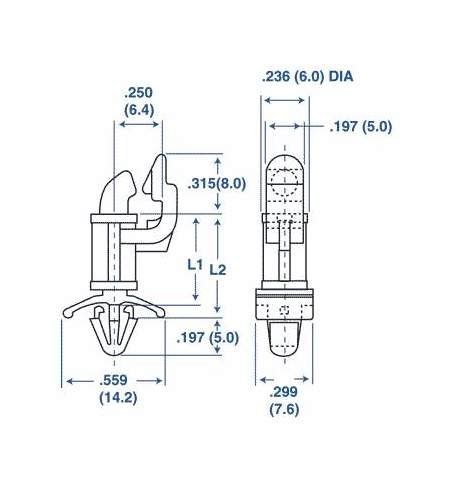

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.752 (19.1) inches (mm)

Specifications Dim L2

.843 (21.4) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)

02 Series Edge Board Mount with .187 Chassis Hole - Nylon 66 UL94V-0
