03 Series Edge Board Mount .187 Chassis Hole
03 Series Edge Board Mount .187 Chassis Hole
SKU:01C-96947f
Securely lock and support circuit boards with the 03 Series Edge Mount. RoHS compliant with temperature range -40 to 185F.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
03 Series Edge Board Mount .187 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
03 Series Edge Board Mount .187 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

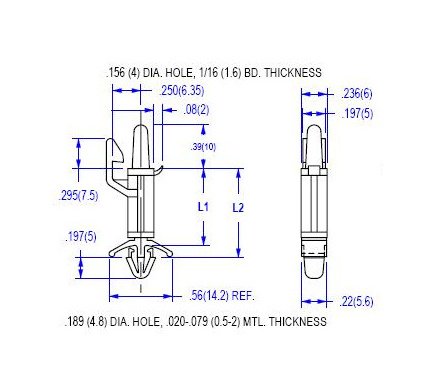

The 03 Series Edge Board Mount with .187 Chassis Hole is a premium circuit board support solution designed for easy hand installation and secure locking to the PC board edge. Made from Nylon 66 UL94V-2 material (UL94V-0 variant available), this product meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), it offers reliable performance in various environments.
Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L1
.378 (9.6) inches (mm)
Specifications Dim L2
.469 (11.9) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
