03 Series Edge Board Mount .187 Chassis Hole Support Bracket
03 Series Edge Board Mount .187 Chassis Hole Support Bracket
SKU:01C-f6d449
Securely support your PC board edge with the 03 Series Edge Board Mount .187 Chassis Hole Support Bracket. Easy installation and RoHS compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
03 Series Edge Board Mount .187 Chassis Hole Support Bracket
$14.99
Quantity: 1
Claim Your Seller Account
03 Series Edge Board Mount .187 Chassis Hole Support Bracket
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

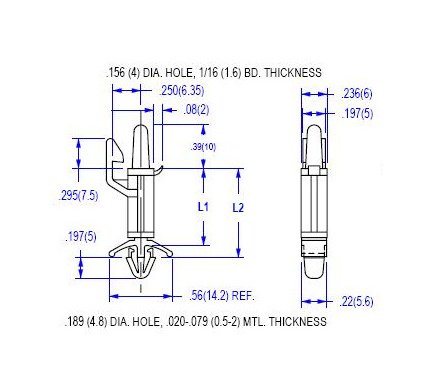

The 03 Series Edge Board Mount .187 Chassis Hole Support Bracket offers easy hand installation and secure locking to the PC board edge. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this support bracket is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), it is suitable for a wide range of applications. The support bracket dimensions include L1: .878 inches, L2: .969 inches, Panel Thickness: .063 inches, and Chassis Thickness: .020 - .079 inches.
Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L1
.878 (22.3) inches (mm)
Specifications Dim L2
.969 (24.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
