03 Series Edge Board Mount Nylon Circuit Board Support

Name: 03 Series Edge Board Mount Nylon Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-8e6dee
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-8e6dee

Securely install circuit boards with ease using the 03 Series Edge Board Mount made of Nylon 66 UL94V-2 material. RoHS compliant with ASTM standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

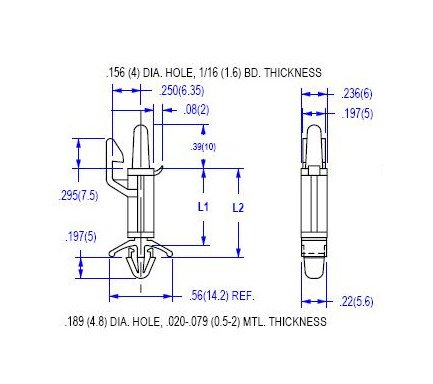

The 03 Series Edge Board Mount x .187 Chassis Hole is a premium circuit board support made of durable Nylon 66 UL94V-2 material, ensuring secure installation by hand. It features precise dimensions of L1: .500" (12.7mm) and L2: .591" (15.0mm), suitable for panel thickness ranging from .063" (1.6mm) to chassis thickness of .020-.079" (.5-2.0mm). This support is RoHS compliant, with a temperature range of -40 to 185F (-40 to 85C), meeting ASTM D 4066 and PA111 standards.

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.500 (12.7) inches (mm)

Specifications Dim L2

.591 (15.0) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)

03 Series Edge Board Mount Nylon Circuit Board Support
