03 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Supports

Name: 03 Series Edge Board Mount with .187 Chassis Hole - Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-f707c6
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f707c6

Securely mount PCBs with the 03 Series Edge Board Mount x .187 Chassis Hole. Easy to install, durable Nylon 66 UL94V-2 material, ASTM compliant, and RoHS certified. Pack of 500.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 03 Series Edge Board Mount x .187 Chassis Hole is a reliable solution for secure installation on PC board edges. Constructed from Nylon 66 UL94V-2 material, this mount ensures durability and safety. It features easy manual installation and a secure locking mechanism. With ASTM D 4066 and PA111 compliance, this mount offers a temperature range of -40 to 185F (-40 to 85C), making it suitable for diverse applications. Additionally, RoHS compliance guarantees environmental safety. Each pack contains 500 mounts for convenient large-scale use.

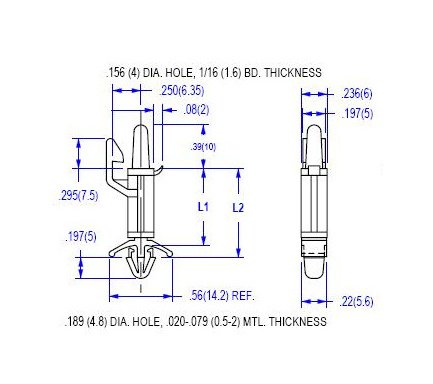

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.626 (15.9) inches (mm)

Specifications Dim L2

.717 (18.2) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)
