04 Series Wide Wire Saddle - Nylon 66 Material, Pack of 500

Name: 04 Series Wide Wire Saddle - Nylon 66 Material, Pack of 500
Brand: All Electronics Hardware
SKU: 03W-9a958b
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-9a958b

Efficiently route and secure wires with the 04 Series Wide Wire Saddle. Wide entry, side locking design, and minimal board protrusion. Pack of 500, Nylon 66 material.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 04 Series Wide Wire Saddle is designed for optimal wire routing solutions in both consumer and institutional settings. Featuring a wide entry for easy wire insertion, this saddle allows for side or funnel entry of wires, ensuring efficient installation. The side locking design securely holds wires in place while being easily releasable, making maintenance hassle-free. With minimal board protrusion on the chassis underside, this wire saddle is ideal for space-constrained applications. Crafted from durable Nylon 66 material, each pack contains 500 saddles, providing cost-effective wire management solutions for various projects.

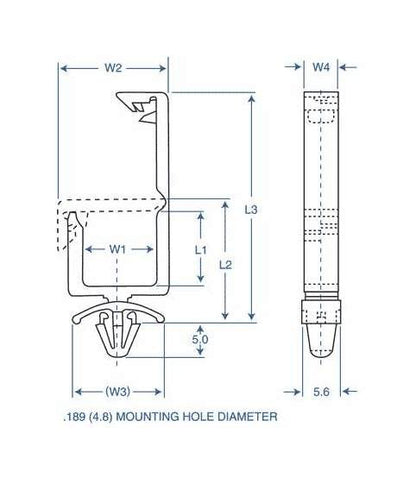

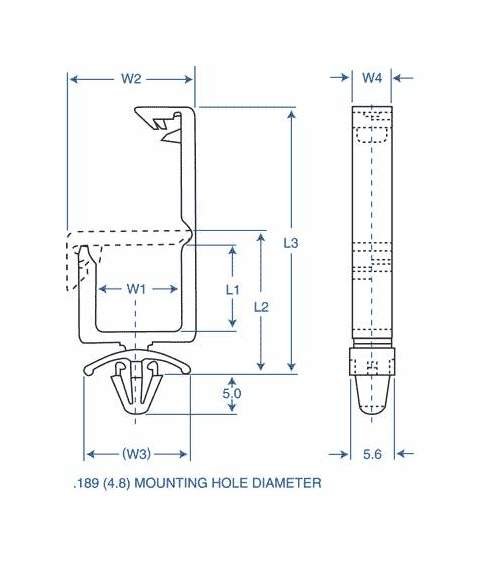

Product Specifications

Specifications Chassis Thickness

.079 - .126 (2.0 - 3.2) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.906 (23.0) inches (mm)

Specifications Dim L2

1.311 (33.3) inches (mm)

Specifications Dim L3

2.224 (56.5) inches (mm)

Specifications Dim W1

.709 (18.0) inches (mm)

Specifications Dim W2

.965 (24.5) inches (mm)

Specifications Dim W3

.717 (18.2) inches (mm)

Specifications Dim W4

.236 (6.0) inches (mm)

Specifications Material Code

UL94V-2
