04 Series Wide Wire Saddle - Nylon 66, UL94V-0 White, Pack of 500

Name: 04 Series Wide Wire Saddle - Nylon 66, UL94V-0 White, Pack of 500
Brand: All Electronics Hardware
SKU: 03W-483aac
Price: 49.99 USD
Availability: OutOfStock

SKU:03W-483aac

Efficient wire management with wide entry, secure locking, minimal board protrusion. Pack of 500 Nylon 66 wire saddles.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 04 Series Wide Wire Saddle is designed for efficient wire management with a wide entry that facilitates easy wire insertion through side or funnel entry options. Its side locking design ensures secure wire positioning while allowing for release when needed. This wire saddle features minimal board protrusion on the chassis underside, making it ideal for applications with limited space requirements. Constructed from durable Nylon 66 material with a UL94V-0 fire rating, this pack of 500 wire saddles is a reliable choice for wire routing in various settings.

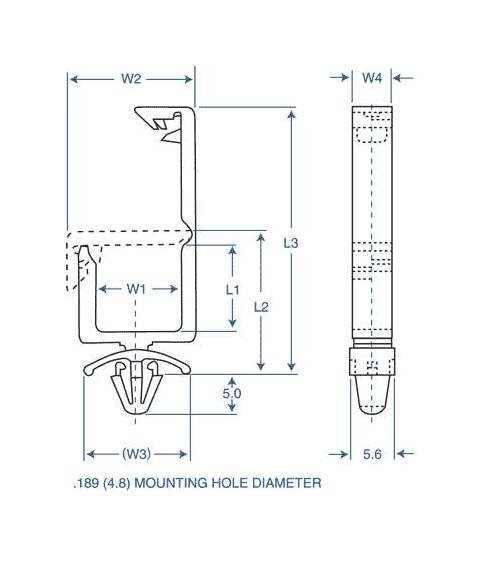

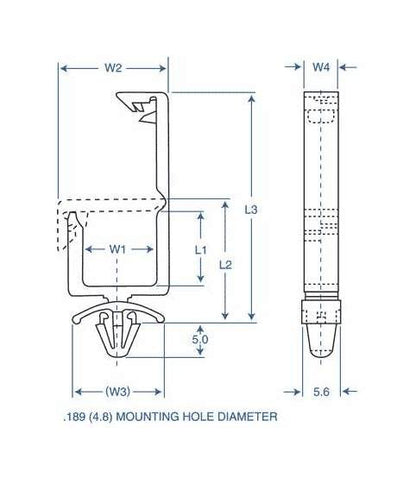

Product Specifications

Specifications Chassis Thickness

.079 - .126 (2.0 - 3.2) inches (mm)

Specifications Color

White

Specifications Dim L1

.906 (23.0) inches (mm)

Specifications Dim L2

1.311 (33.3) inches (mm)

Specifications Dim L3

2.224 (56.5) inches (mm)

Specifications Dim W1

.709 (18.0) inches (mm)

Specifications Dim W2

.965 (24.5) inches (mm)

Specifications Dim W3

.717 (18.2) inches (mm)

Specifications Dim W4

.236 (6.0) inches (mm)

Specifications Material Code

UL94V-0

04 Series Wide Wire Saddle - Nylon 66, UL94V-0 White, Pack of 500
