04 Series Wide Wire Saddle - Nylon 66, White, UL94V-0, 500/bag
04 Series Wide Wire Saddle - Nylon 66, White, UL94V-0, 500/bag
SKU:03W-9e6980
The 04 Series Wide Wire Saddle: Wide entry, secure locking, minimal protrusion - Nylon 66, White, UL94V-0
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
04 Series Wide Wire Saddle - Nylon 66, White, UL94V-0, 500/bag
$19.99
Quantity: 1
Claim Your Seller Account
04 Series Wide Wire Saddle - Nylon 66, White, UL94V-0, 500/bag
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 04 Series Wide Wire Saddle offers a convenient wide entry for easy wire insertion, supporting side or funnel entry configurations. Its side locking design ensures secure wire placement with easy release. This saddle boasts minimal board protrusion, making it ideal for space-constrained applications. Crafted from Nylon 66 in white color, this pack of 500 units provides durable wire management solutions that meet stringent industry standards for safety and reliability.
Product Specifications

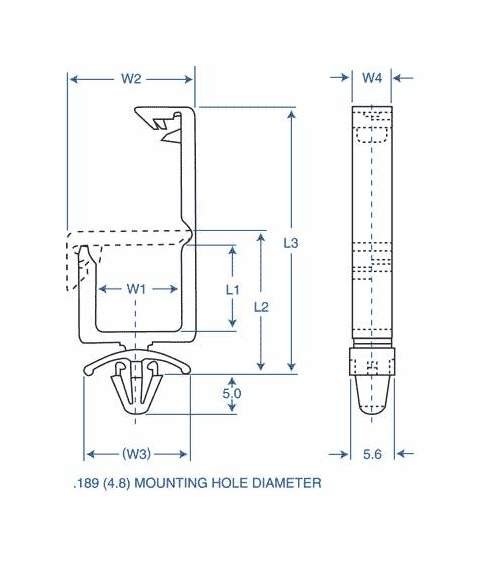

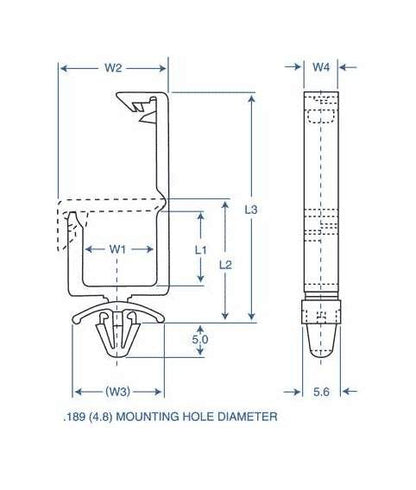

Specifications Chassis Thickness
.024 - .079 (.6 - 2) inches (mm)
Specifications Color
White
Specifications Dim L1
.236 (6.0) inches (mm)
Specifications Dim L2
.543 (13.8) inches (mm)
Specifications Dim L3
1.165 (29.6) inches (mm)
Specifications Dim W1
.433 (11.0) inches (mm)
Specifications Dim W2
.657 (16.7) inches (mm)
Specifications Dim W3
.559 (14.2) inches (mm)
Specifications Dim W4
.197 (5.0) inches (mm)
Specifications Material Code
UL94V-0
