04 Series Wide Wire Saddle - Nylon 66 Wire Routing Device

Name: 04 Series Wide Wire Saddle - Nylon 66 Wire Routing Device
Brand: All Electronics Hardware
SKU: 03W-1fcacb
Price: 12.99 USD
Availability: OutOfStock

SKU:03W-1fcacb

Effortlessly manage wires with the 04 Series Wide Wire Saddle. Wide entry, secure locking design, and space-saving chassis make it a go-to choice for efficient wire routing.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 04 Series Wide Wire Saddle is designed to streamline wire insertion with its wide entry feature, allowing for easy side or funnel entry of wires. Its innovative side locking design securely holds wires in place while remaining releasable, ensuring flexibility in installations. With minimal board protrusion on the chassis underside, this wire saddle is ideal for applications with limited space constraints. Crafted from durable Nylon 66 material, this product guarantees reliability and longevity in wire management solutions.

Product Specifications

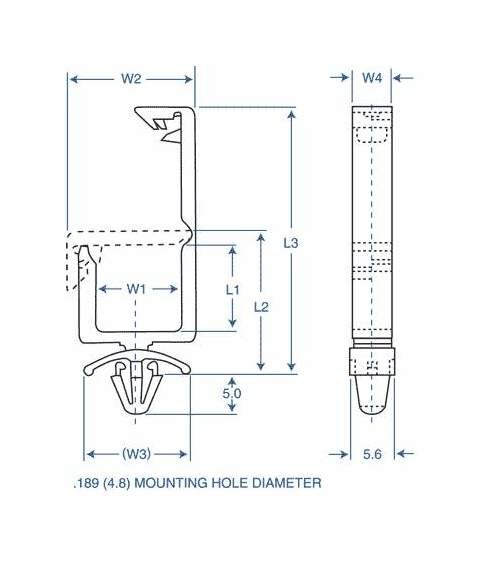

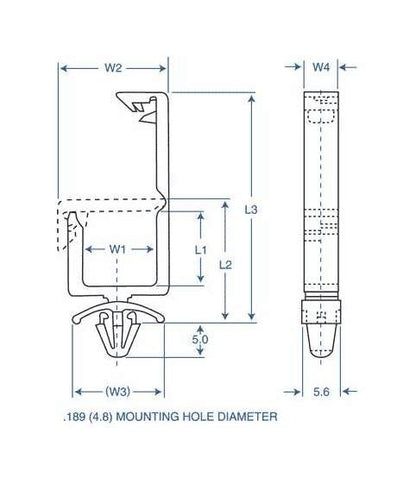

Specifications Chassis Thickness

.024 - .079 (.6 - 2) inches (mm)

Specifications Color

Natural

Specifications Dim L1

.906 (23.0) inches (mm)

Specifications Dim L2

1.264 (32.1) inches (mm)

Specifications Dim L3

2.177 (55.3) inches (mm)

Specifications Dim W1

.709 (18.0) inches (mm)

Specifications Dim W2

.965 (24.5) inches (mm)

Specifications Dim W3

.717 (18.2) inches (mm)

Specifications Dim W4

.236 (6.0) inches (mm)

Specifications Material Code

UL94V-2

04 Series Wide Wire Saddle - Nylon 66 Wire Routing Device
