04 Series Wide Wire Saddle - Wire Routing Device
04 Series Wide Wire Saddle - Wire Routing Device
SKU:03W-fc0a81
Seamlessly route wires with the 04 Series Wide Wire Saddle. Secure, space-saving, and durable Nylon 66 construction for efficient wire management.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
04 Series Wide Wire Saddle - Wire Routing Device
$12.99
Quantity: 1
Claim Your Seller Account
04 Series Wide Wire Saddle - Wire Routing Device
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 04 Series Wide Wire Saddle is designed for seamless wire insertion with its wide entry feature, accommodating both side and funnel entry of wires. Its side locking design ensures secure wire placement while allowing for easy release when needed. With minimal board protrusion, it's perfect for space-constrained applications. Constructed from Nylon 66 material meeting UL94V-0 standard, this Wire Saddle ensures durability and reliability in wire management.

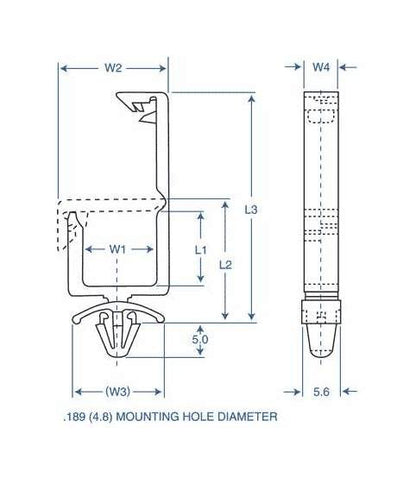

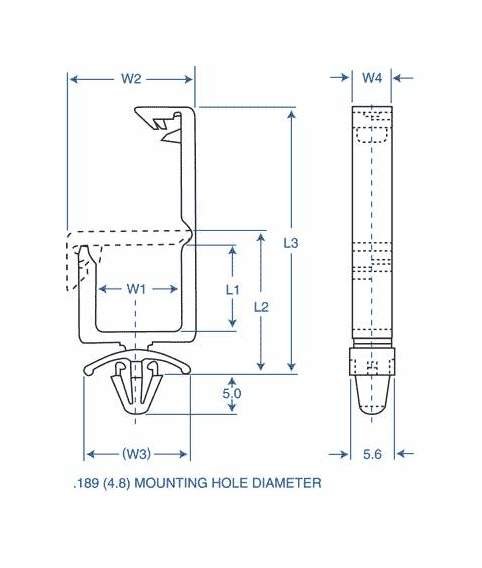

Product Specifications
Specifications Chassis Thickness
.024 - .079 (.6 - 2) inches (mm)
Specifications Color
White
Specifications Dim L1
.669 (17.0) inches (mm)
Specifications Dim L2
.976 (24.8) inches (mm)
Specifications Dim L3
1.673 (42.5) inches (mm)
Specifications Dim W1
.520 (13.2) inches (mm)
Specifications Dim W2
.748 (19.0) inches (mm)
Specifications Dim W3
.559 (14.2) inches (mm)
Specifications Dim W4
.217 (5.5) inches (mm)
Specifications Material Code
UL94V-0
